TB130 Top Bender Tube, Pipe and Profile Bender

Ercolina Professional Series - Non-Mandrel Rotary Draw Benders

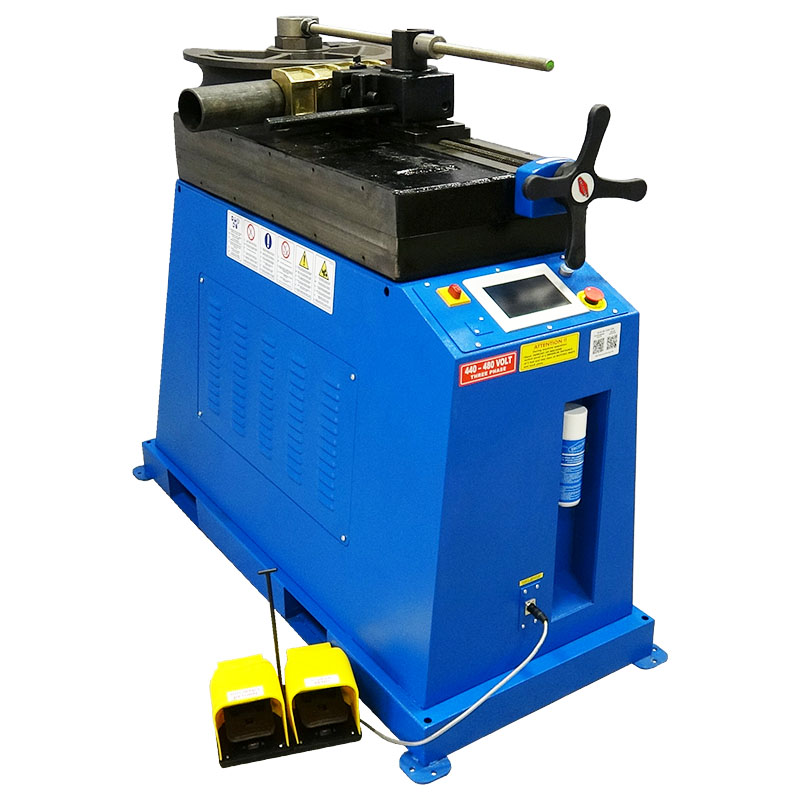

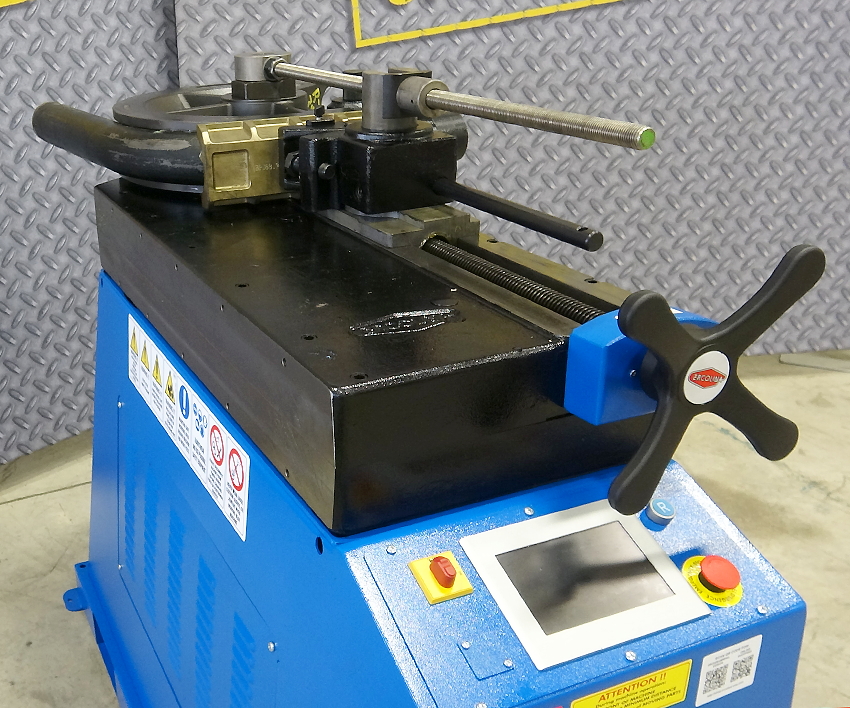

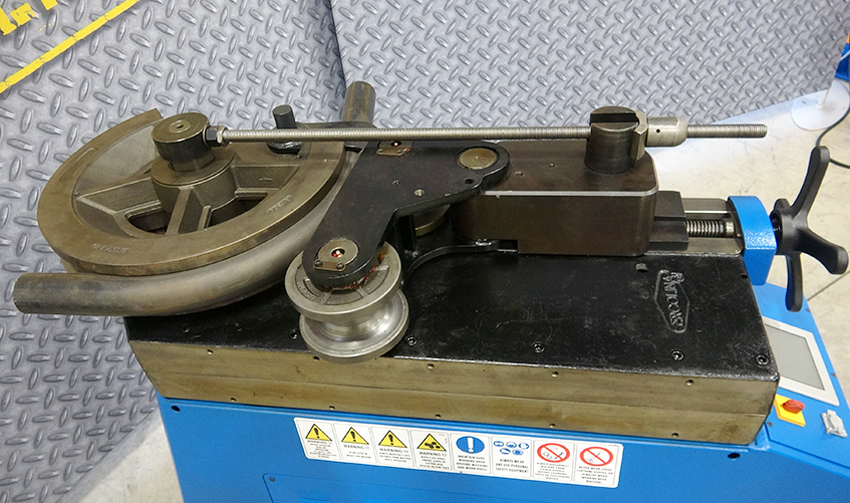

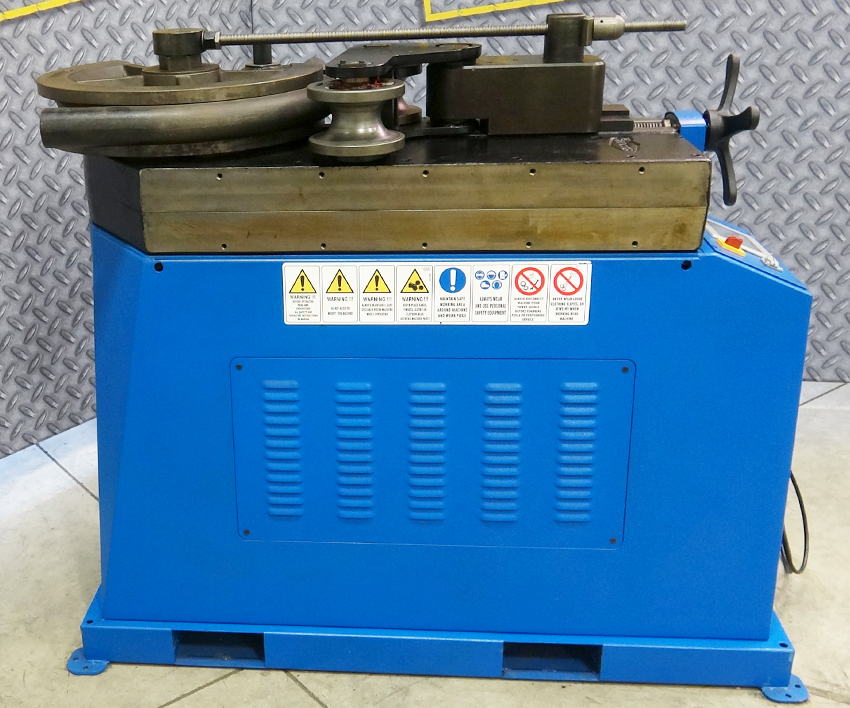

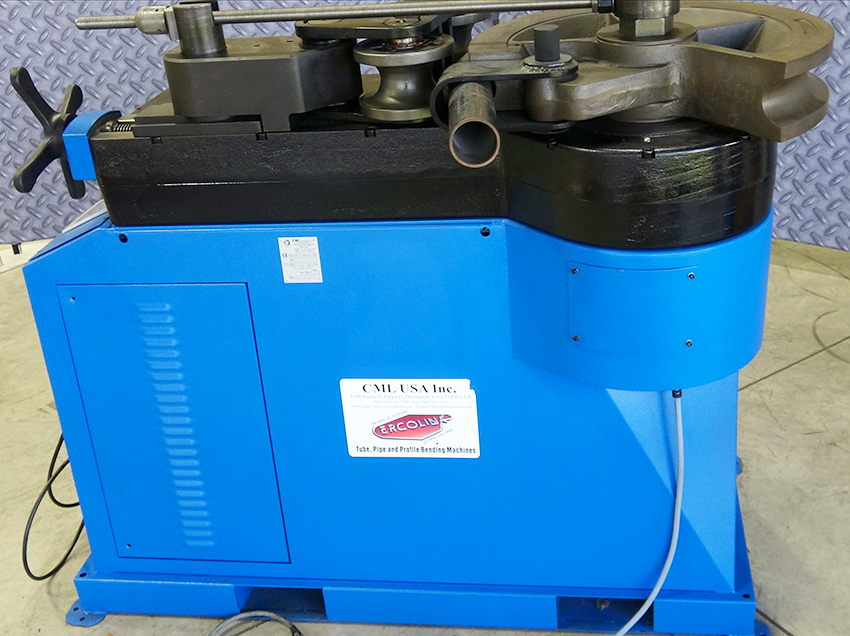

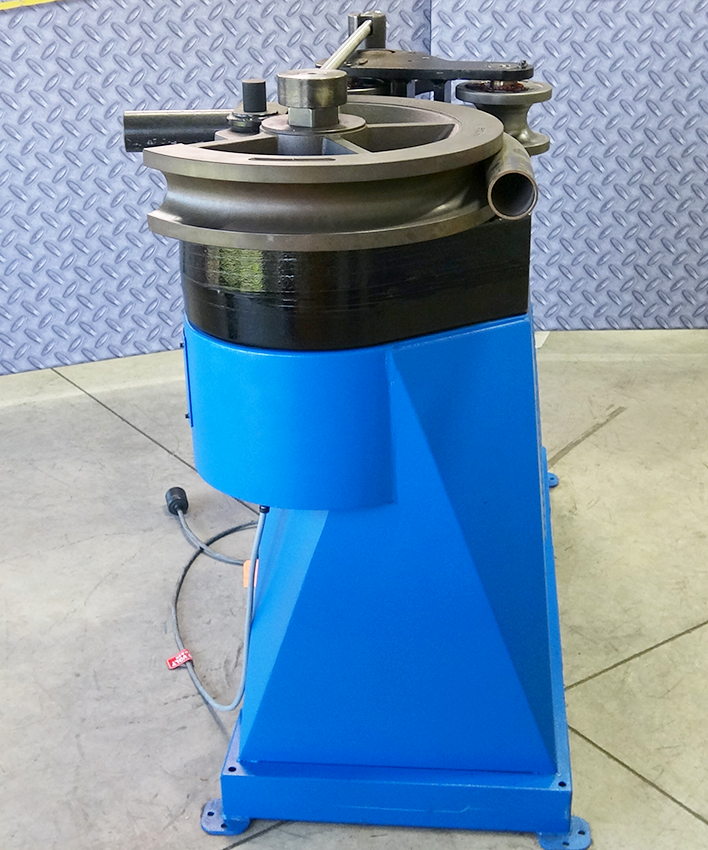

ERCOLINA TB130 TOP BENDER® ROTARY DRAW BENDER

Ercolina TB130 Top Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

Key Features

Mild steel tube capacity 5″
Pipe capacity 4″ Sch. 40
Square tube capacity 4″
Maximum CLR 27-1/2″
Bend to CLR as small as 2D

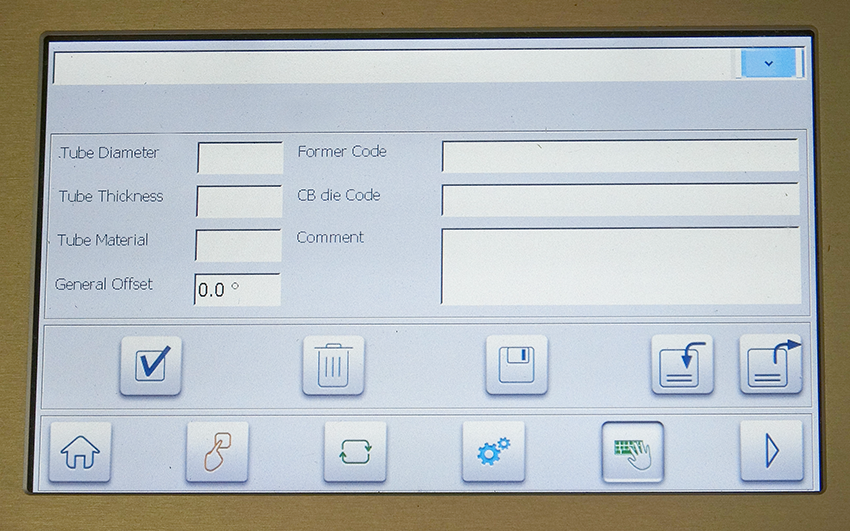

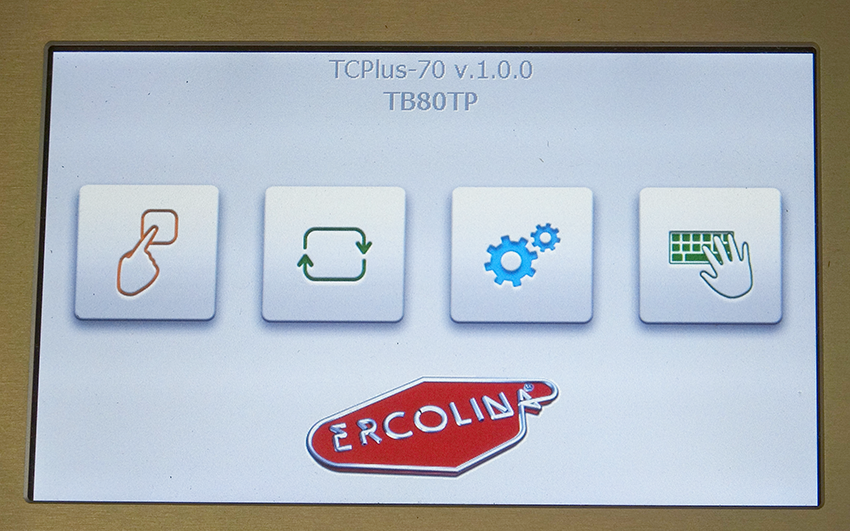

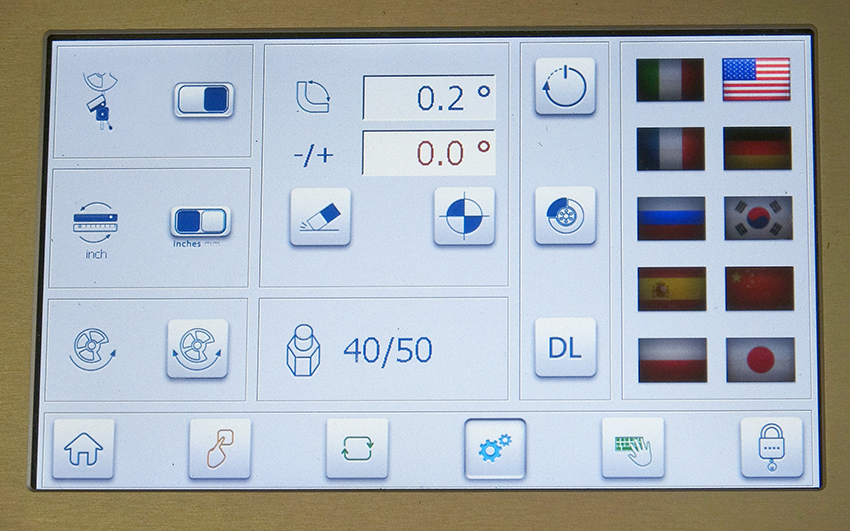

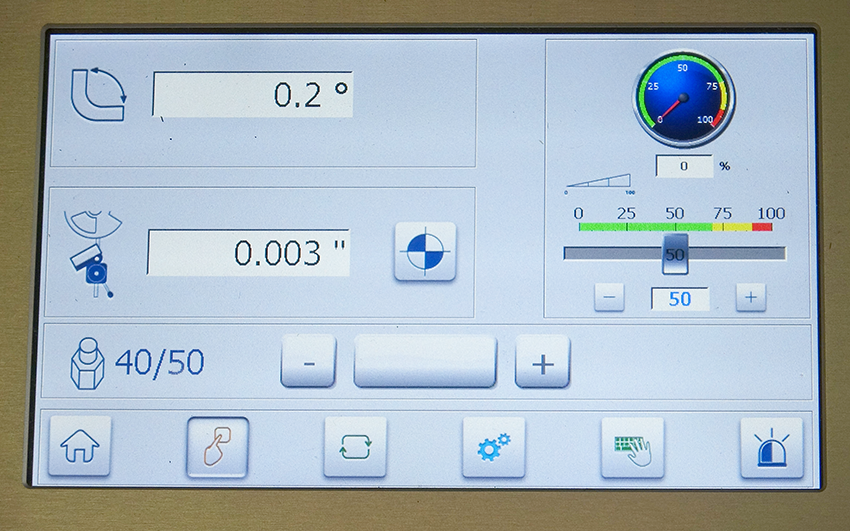

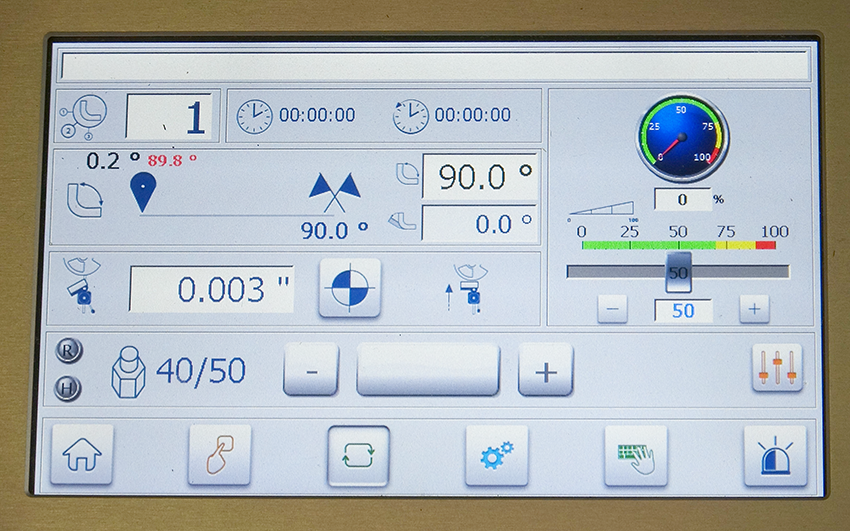

Touch screen programming of bend angle with system diagnostics in multiple languages
Quick-change tooling system
Digital display of bend angle

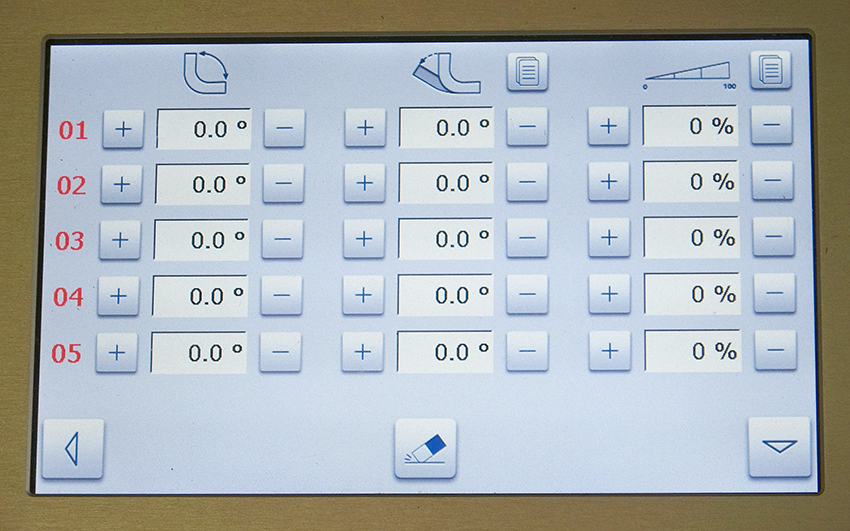

Material springback compensation

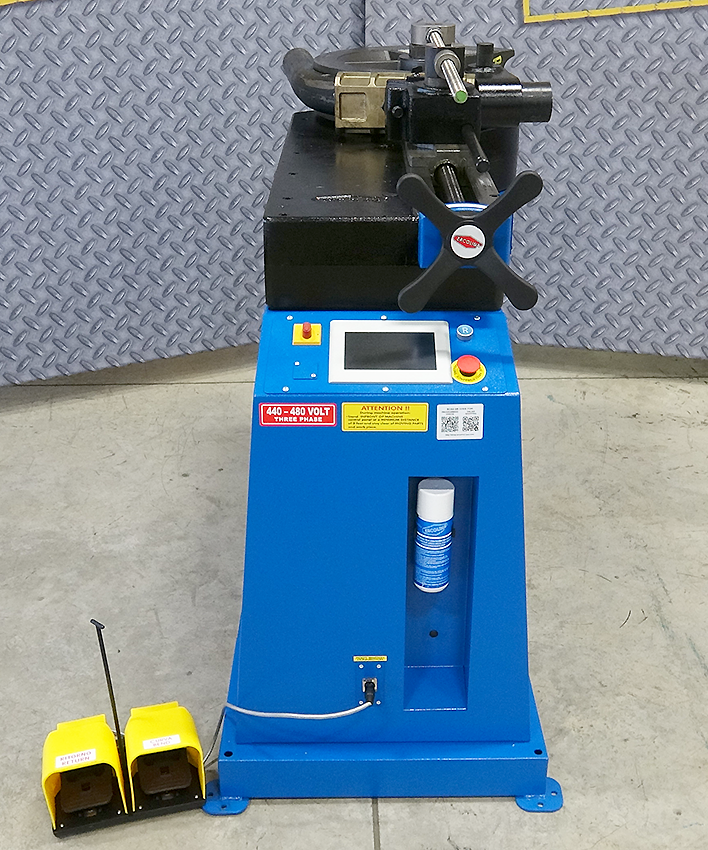

Foot pedal control of bend and return functions
Counterbending die positioning monitored electronically for accuracy and repeatability
Heavy-duty steel gear case
No hydraulic components

Published capacities and specifications

Mild-steel tube	Up to 5 in.
Pipe	Up to 4 in. Schedule 40
Square tube	Up to 4 in. × .187 in. wall
Centerline radius	As small as 2D; maximum 27-1/2 in.
Power	220V or 480V 3 phase
Drive	Electromechanical; no hydraulic components

Published capacities are based on A53 Grade A material
at 48,000 psi tensile strength.
Higher-strength and heavy-wall materials reduce capacity.

Prepare Your Bend Data With Bend Genie

Build the part in 3D, review the bend sequence, prepare LRA information, and calculate springback before production. See how Bend Genie supports a better Ercolina machine and tooling discussion.

Explore Bend Genie for Ercolina Try Bend Genie

TB130 Top Bender®: Bends to 5″ Tube

Electrical Options:
220V Three Phase / 480V Three Phase

ROTARY DRAW ACCESSORIES

Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.

BENDING SOFTWARE

Use Ercolina’s BendGenie or Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications! Ideal for use with A40-P Two Axis Positioner.

Additional Savings when Purchasing Tooling Kit with Machine

TB130 with Pipe Kit Part #TB130P
Pipe Size	CLR	Min. Wall	Center Former Part #	Counterbend Die Part #
1-1/4″	3.5	.140	153R090P1250	155P1250
1-1/2″	3.9	.145	153R100P1500	155P1500
2″	5.9	.109	153R150P2000	155P2000
2-1/2″	11.8	.203	157R300P2500-80	155P2500
3″	11.8	.216	157R300P3000-80	155P3000
Pipe Kit only Part #PIPEKIT4

TB130 with “Small Radius” Tube Kit Part #TB130TSR
Tube Size	CLR	Min. Wall	Center Former Part #	Counterbend Die Part #
3/4″	2.6	.035	153R067T0750	154T0750
7/8″	2.2	.065	153R056T0875	154T0875
1″	2.6	.065	153R067T1000	154T1000
1-1/4″	3.2	.083	153R082T1250	154T1250
1-1/2″	3.9	.083	153R100T1500	154T1500
2″	5.9	.095	153R150T2000	154T2000
Tube Kit only Part #TUBEKIT1SR

TB130 with “Large Radius” Pipe Kit Part #TB130TLR
Tube Size	CLR	Min. Wall	Center Former Part #	Counterbend Die Part #
3/4″	2.6	.035	153R067T0750	154T075
7/8″	2.6	.035	153R067T0875	154T0875
1″	3.2	.035	153R082T1000	154T1000
1-1/4″	4.4	.035	153R112T1250	154T1250
1-1/2″	5.9	.049	153R150T1500	154T1500
1-3/4″	6.7	.065	153R170T1750	154T1750
2″	7.5	.065	153R190T2000	154T2000
“Large Radius” Tube Kit only Part #TUBEKIT1

Downloads

All Ercolina machines have downloadable material, available in PDF format. View Downloads
