Bending Software

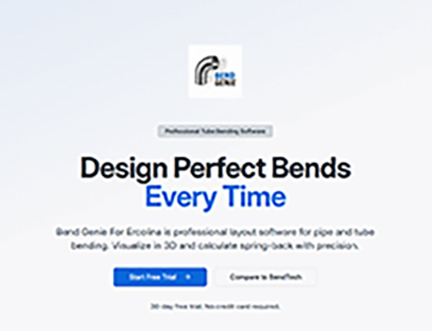

Ercolina’s Bend Genie Bending Software

• Complete Ercolina standard mandrel die library included. App automatically guides you when mandrel tooling is required based on D-factor.
• Displays D-factor (CLR/OD ratio), predicted ovality %, and bend quality rating (Excellent/Good/Marginal/Poor) based on your material and tooling selection.
• Pre-loaded with Ercolina, JD Squared, Huth/Ben Pearson, and Baileigh dies. Create your own custom libraries.
• Steel, stainless, aluminum, copper, titanium with yield strength and springback factors built in.
• Fine-tune stretch factors for accurate cut lengths. Material properties factor into all calculations.

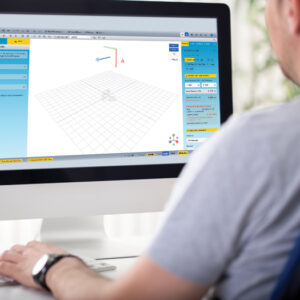

• Full 3D visualization for round, square, and rectangular tube profiles with realistic rendering.
• Automatic checks for material, die compatibility, and bend conflicts. Real-time alerts prevent costly mistakes.

• New AI feature reviews your bend setup and offers optimization suggestions for better results.
• Access from any device – Windows, Mac, tablet, even phone. No installation required.

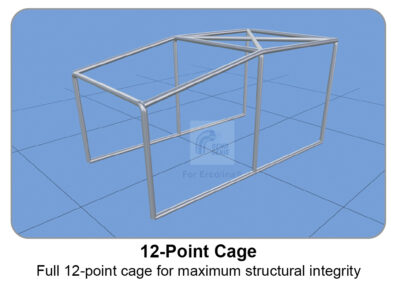

• All templates included.
• Multi-seat organizations with shared cloud storage and project management.
• Built-in presets for CE40, CE50, CE60, CE70, and CE100 machines.
• Multi-language interface (EN, DE, IT, ES, FR) with USD and EUR pricing.
• 11-step guided walk-through gets you productive fast. No manual reading required.
• One-click screen sharing with our tech support team. Get help right inside the app – no third-party software needed.

Downloads

All Ercolina machines have downloadable material, available in PDF format. View Downloads

Ercolina’s Super Bend-Tech SE Bending Software

VIEW THIS VIDEO FOR AN OVERVIEW OF ERCOLINA’S SUPER BEND-TECH SE BENDING SOFTWARE!

Use Ercolina’s Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications! Ideal for use with A40-P two axis positioner.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• Easy to Use
• Create your own parts and dimension prints
• Eliminate unnecessary material scrap
• Previous layout and design experience not required
• Mouse pick points allow dimension placement
• Dimension with decimals or fractions
• Save part program files for later use
• Information material data base included
• CLR or inside radius (adjustable for each bend)
• Create printable dimensioned model, shaded model, flat layout & title block
• Flat layout of cut length & bending locations
• Can be dimensioned from start of bend, end of bend & center of bend, or either direction
• Print includes bending data such as bend angles, CLR or inside radius, rotation angle & bend order
• Preferences: color, text size & arrow size are saved in user definable data bases

• Verifies sufficient material is available for bending process
• Provides springback bend angle
• Extra checking tools provided to verify part validity
• Allows multiple dies to be used on the same part
• Graphical layout interface provided
• Advanced LRA “Length, Rotation & Angle” design interface
• Powerful reverse engineering feature
• Inch to metric conversion
• All standard Ercolina tooling included in tooling library
• LRA: transfers any part into XYZ data when entering LRA information into Custom Part interface; XYZ data available
• Railing Templates: includes hand railing template
• Chord measuring tool for large radius bending
• File Import/Export
• Estimating: Helps define project cost
