CE40 Angle Roll

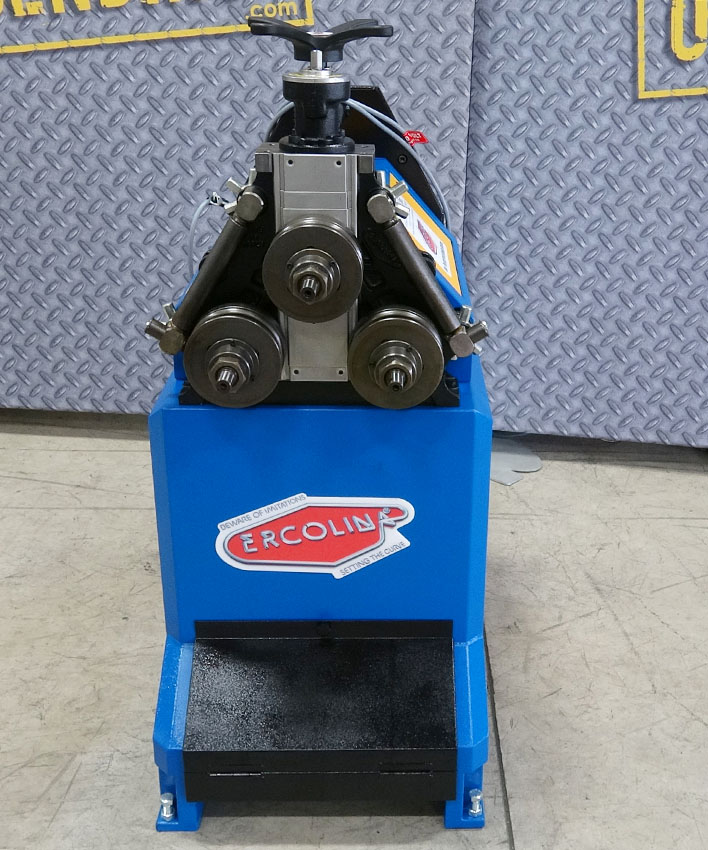

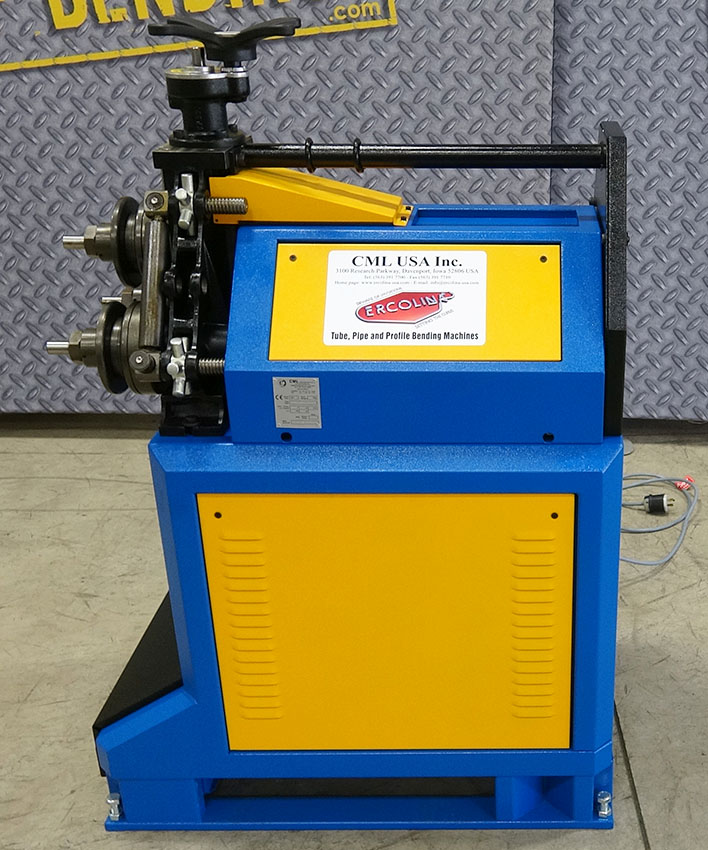

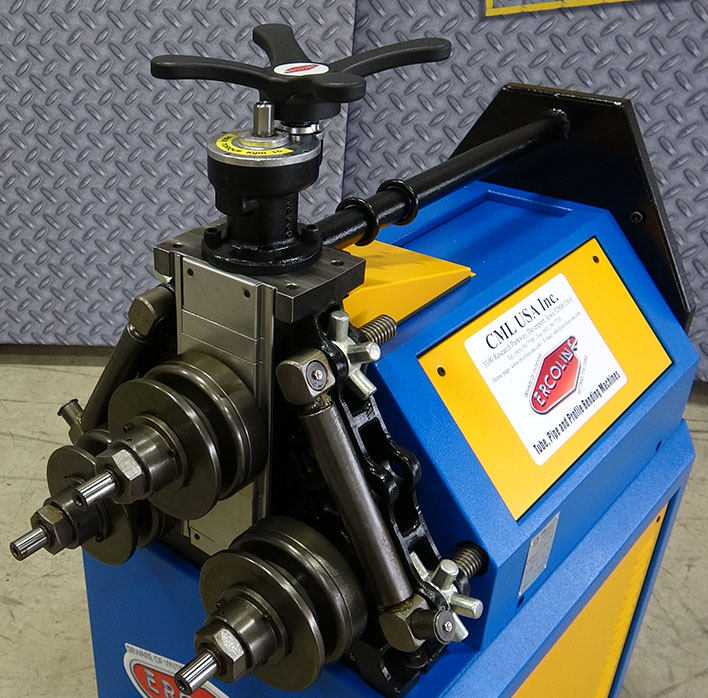

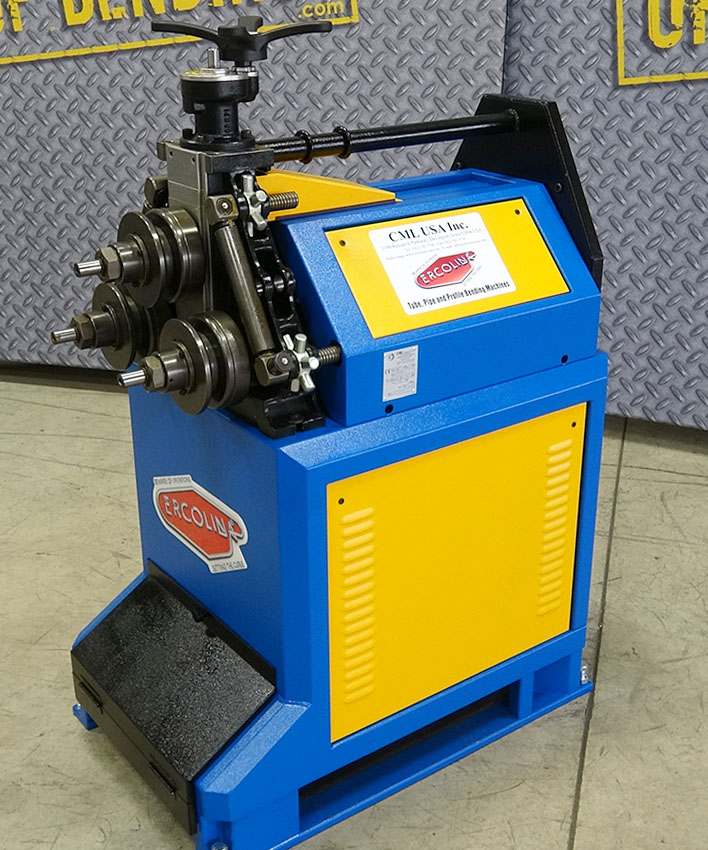

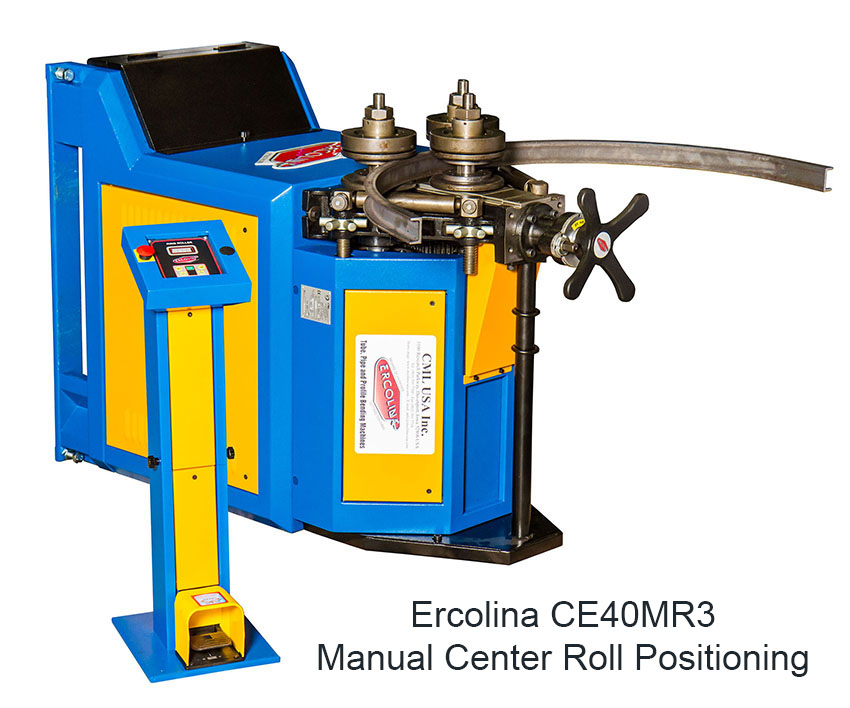

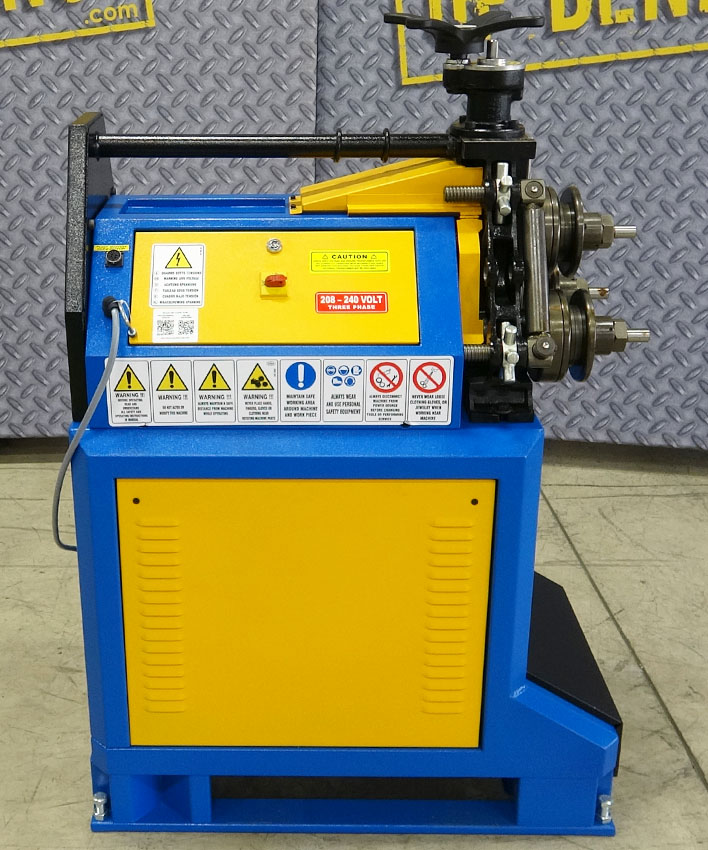

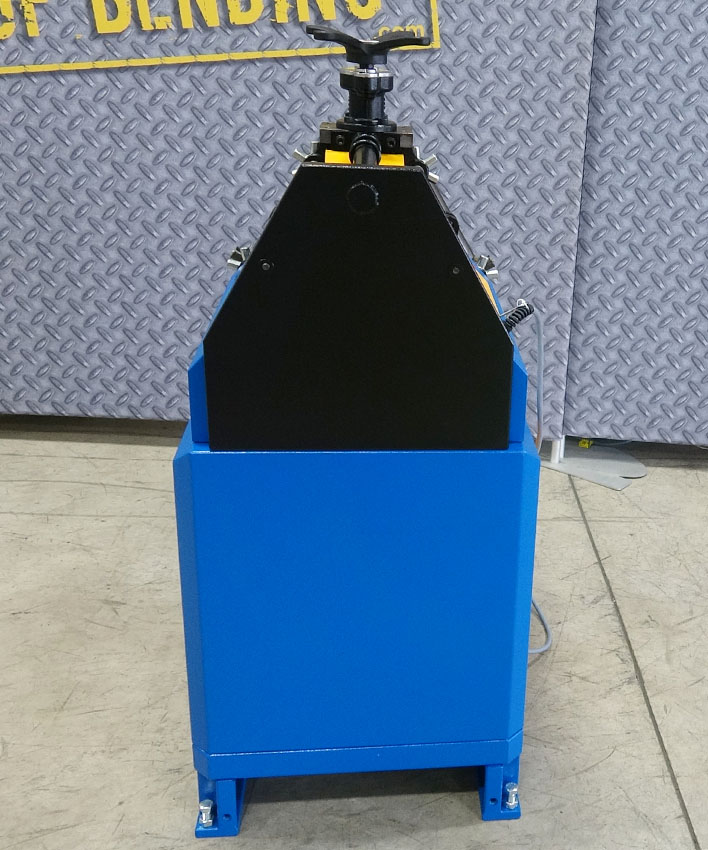

ERCOLINA CE40MR3 Manual Angle Roll: 2″ Capacity Sch. 40 Pipe and Angle Iron

Ercolina’s CE40MR3 angle roll model has manual center roll positioning with patented torque-multiplier, vertical or horizontal operating position and digital readout of center roll positioning.

Capacities & Specifications

Pipe (Max.)	2″ Sch. 40
Angle (Max.)	2″ x 2″ x 1/4″”
Tube (Max.)	2-1/2″ – .125 wall
Roll Shaft Diameter	40mm

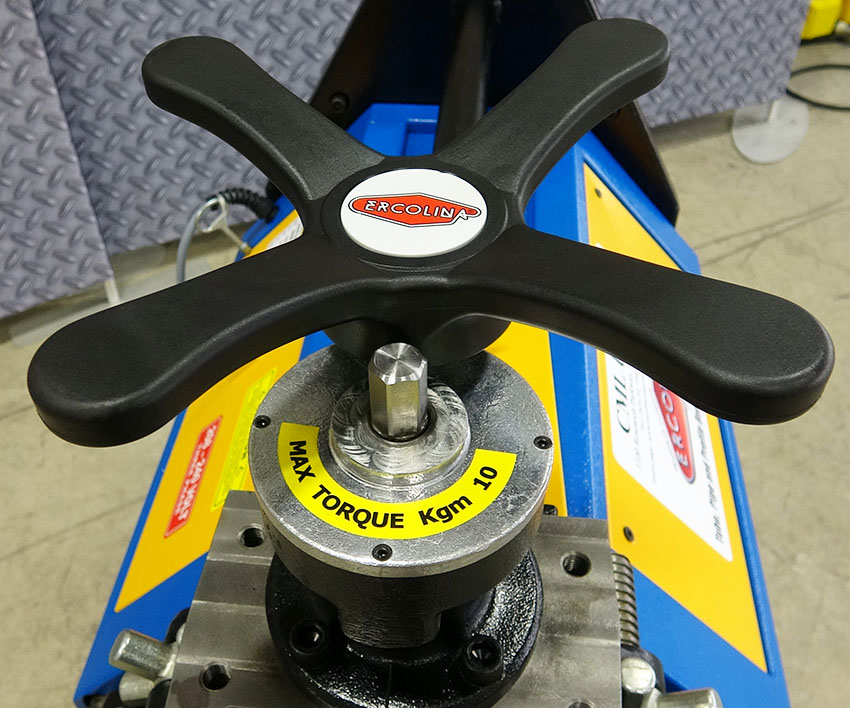

Center Roll Positioning	Manual with patented torque multiplier
Shaft Speed	10 RPM
Universal Tooling (included)	6-5/8″ O.D.
Programming	Not available
Distance between Shafts	10-5/8″
Operating Voltage	220V or 480V 3ph
Length, Width, Height	39″ x 26″ x 59″
Weight	775 lbs.

All capacities based on mild grade materials;
heavy wall and high tensile materials reduce machine capacity.

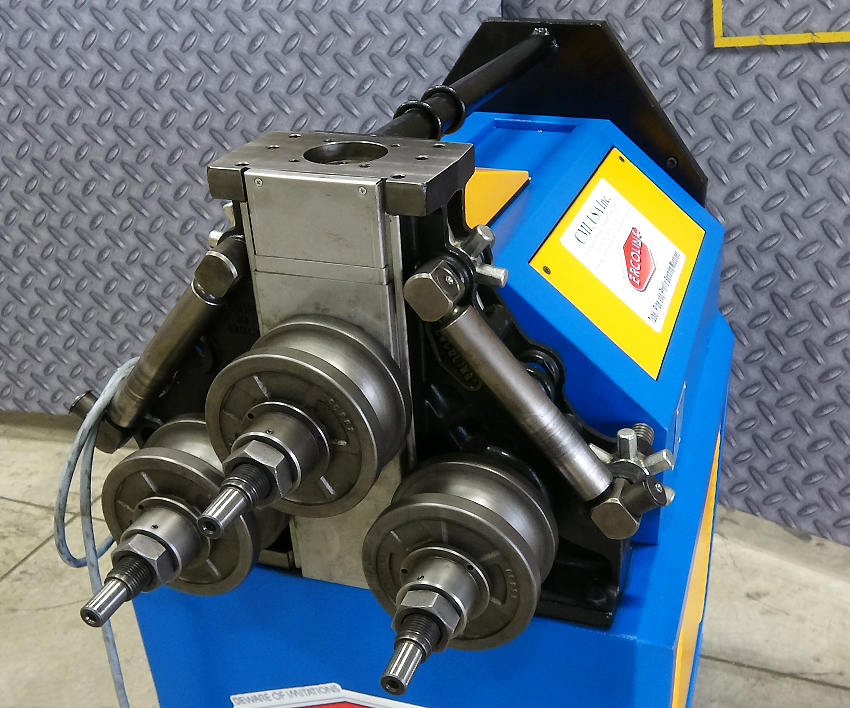

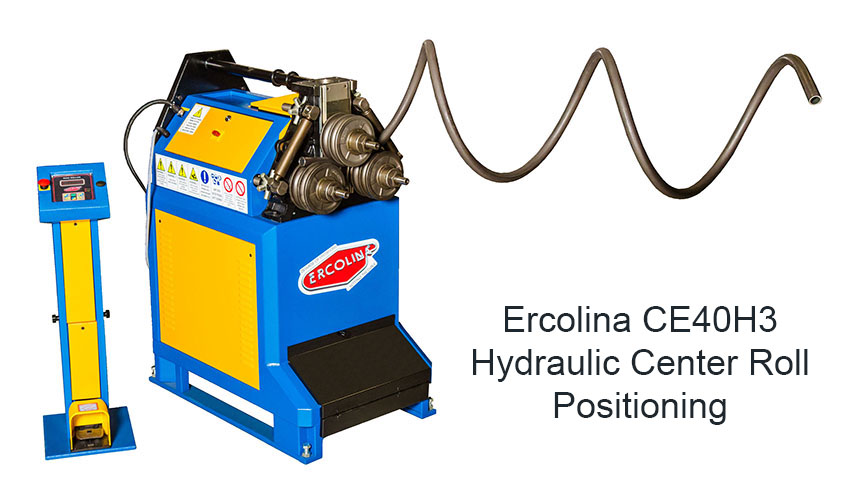

ERCOLINA CE40H3 Hydraulic Angle Roll: 2″ Capacity Sch. 40 Pipe and Angle Iron

Ercolina’s CE40H3 angle roll model has 10-ton hydraulic center roll positioning, NC touchpad, eight (8) individual programs and unlimited passes and patented by Ercolina, simultaneous downfeed and roll movement.

Capacities & Specifications

Pipe (Max.)	2″ Sch. 40
Angle (Max.)	2″ x 2″ x 1/4″”
Tube (Max.)	2-1/2″ – .125 wall
Roll Shaft Diameter	40mm
Center Roll Positioning	Hydraulic – 10 Tons
Shaft Speed	10 RPM
Universal Tooling (included)	6-5/8″ O.D.
Programming	NC – Touchpad
Distance between Shafts	10-5/8″
Operating Voltage	220V or 480V 3ph
Length, Width, Height	39″ x 26″ x 59″
Weight	865 lbs.

All capacities based on mild grade materials;
heavy wall and high tensile materials reduce machine capacity.

KEY FEATURES

Bending speeds 20% faster than competitive machines

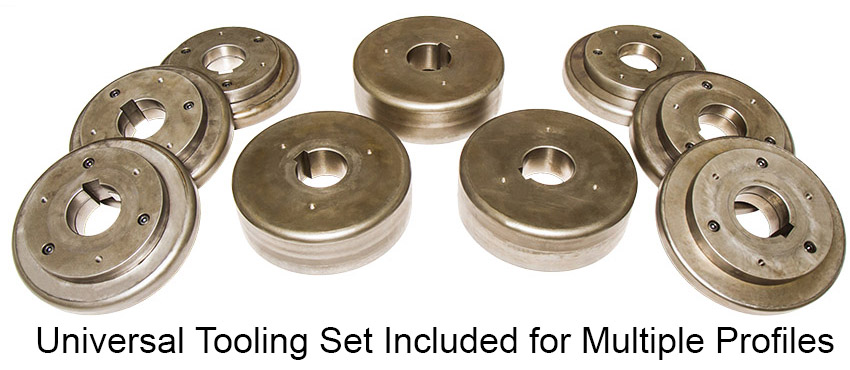

Universal tooling set included with each machine – 6-5/8″ OD
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models
Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation on hydraulic model

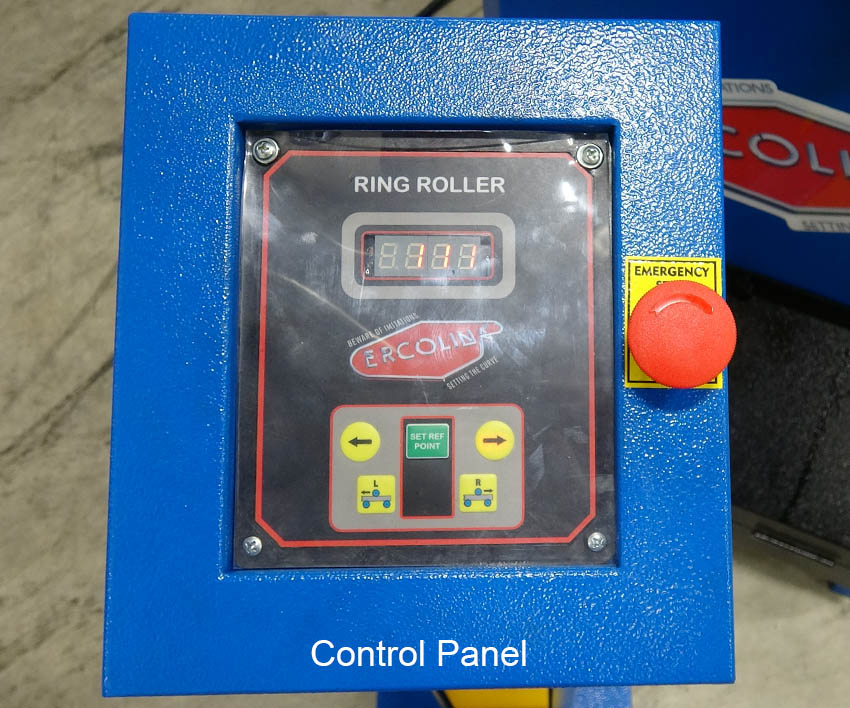

Programmable touchpad controls with digital center roll position display on hydraulic model

Digital center roll position display on manual model
Hydraulic machine with memory storage with eight (8) individual programs and unlimited passes
Remote pendent with low voltage controls and foot pedal switch

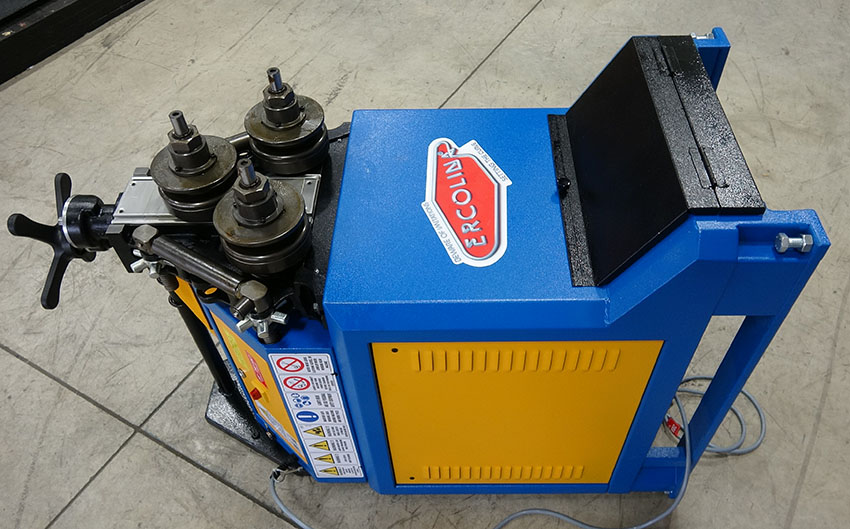

Vertical or horizontal operating position available
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
Inline direct drive roll shaft system
Optional Anti-twist correction system for angle iron “Leg In” applications
All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.

Available Accessories

Anti Twist Device	Required for angle iron “leg in” applications	C5A4
Scroll Curling Device	Attaches to CE40 angle rolls to produce ornamental scroll-work	CR4A8
Bar Twisting Device	Two-in-one accessory including tooling for bar twisting and bending small radius rings and hoops.	CT4/2300
Large Spiral Bending Accessory	Ideal for large pitch spiral bending applications.	CS5A11
Tie Bar Accessory	Recommended when bending large profiles or heavy wall material.	C5A2
Small Radius Tooling	Adjustable tooling set for small radius bending applications	C4RR
Fabricator’s Measuring Set	Kit contains 160mm and 350mm chord gauges, a digital radius gauge and a digital angle degree protractor	KARC

Custom Application

Ercolina’s CE40MR3 Angle Roll, modified at customer’s request to create desired pitch between coils, is shown here rolling 3/8” solid rod to an 8” diameter with a 6” pitch.

Minimum Radius Guide on Mild Steel Material

Profile Type	Profile Dimensions	Min. CLR Inches	Wall
Pipe	1/2″ 1″ 2″	6 10 18	.109 .133 .154
Tube	1″ 1-3/8″ 2-3/4″	6 8 24	.120 .120 .049
Square Tube	13/16″ x 13/16″ 1-9/16″ x 1-9/16″ 2″ x 2″	6 16 24	.065 .083 .120
Rectangular Tube Hard way	1-3/16″ x 7/16″ 1-9/16″ x 13/16″ 2″ x 1″	6 18 24	.065 .095 .095
Rectangular Tube Easy way	1-3/16″ x 7/16″ 2″ x 1″ 2-1/2″ x 1-3/16″	8 20 32	.078 .095 .095
Round Solid	3/4″ 1-3/16″	4 10	NA NA
Square Solid	5/8″ 1″ 1-3/16″	4 8 10	NA NA NA
Rectangular Solid Hard way	1-1/2″ x 7/16″ 2″ x 5/16″ 2″ x 7/16″	4 10 18	NA NA NA
Rectangular Solid Easy way	1-3/16″ x 7/16″ 2-1/2″ x 5/8″ 3-1/8″ x 5/8″	6 8 24	NA NA NA
Angle “Leg Out”	1″ x 1″ 1-1/2″ x 1-1/2″ 2″ x 2″	8 12 16	.156 .120 .236
Angle “Leg In”	1-3/16″ x 1-3/16″ 1″ x 1″ 2″ x 2″	10 14 28	.120 .156 .236
C “Leg Out”	1-3/16″ x 5/8″ 2″ x 1-3/16″	6 14	.156 .236
C “Leg In”	1-9/16″ x 13/16″ 2-1/2″ x 1-3/16″	6 14	.203 .236
