TB80 Top Bender® Tube, Pipe & Profile Bending Machine

Ercolina Professional Series - Non-Mandrel Rotary Draw Benders

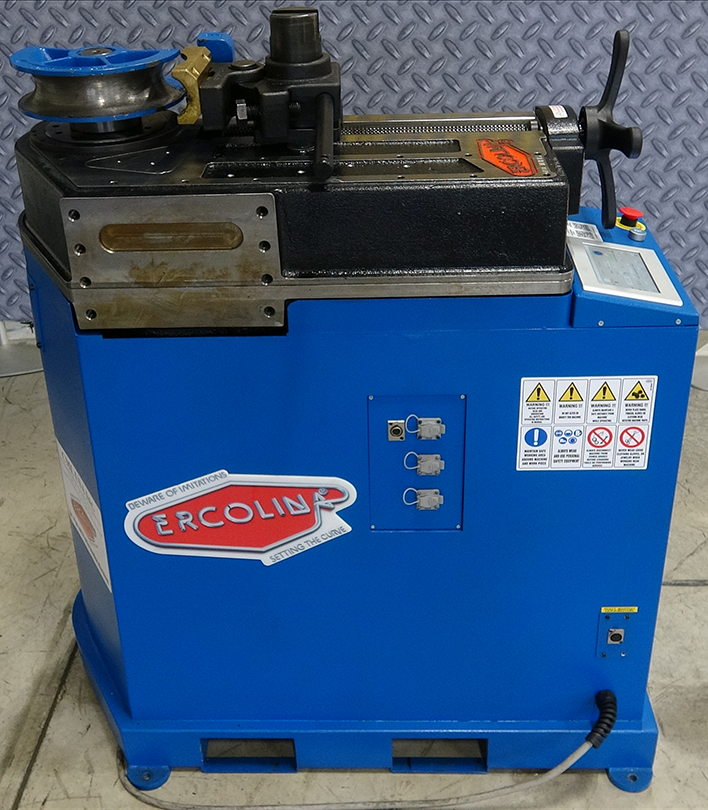

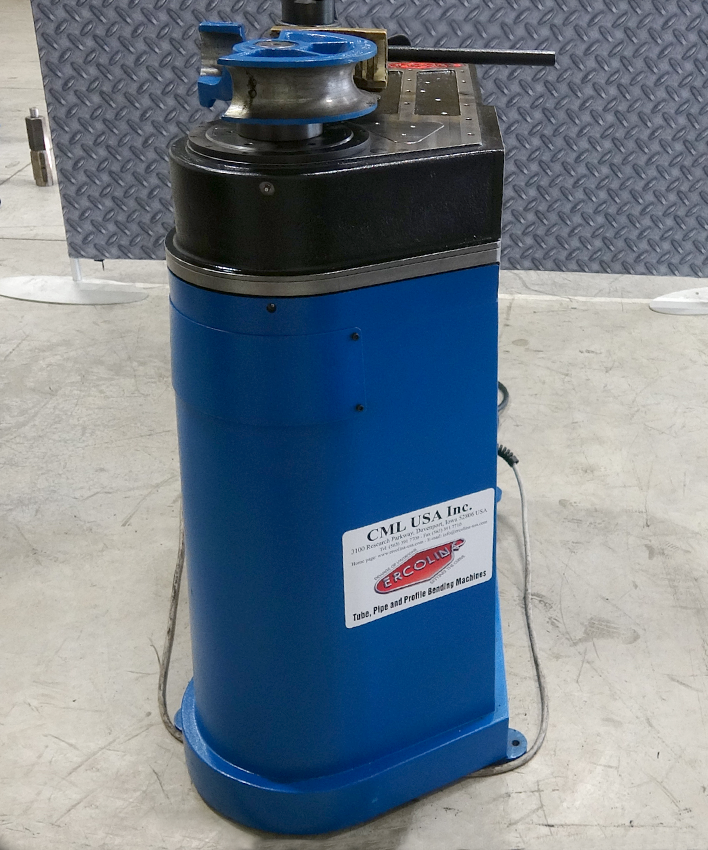

ERCOLINA TB80 TOP BENDER® Tube, Pipe & Profile Bending Machine

Ercolina TB80 Top Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

Key Features

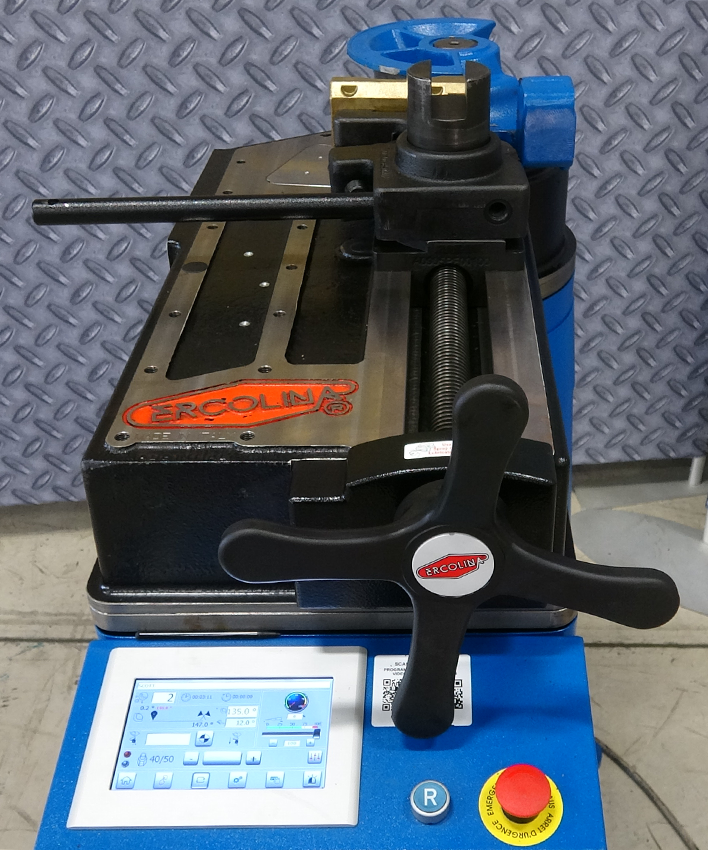

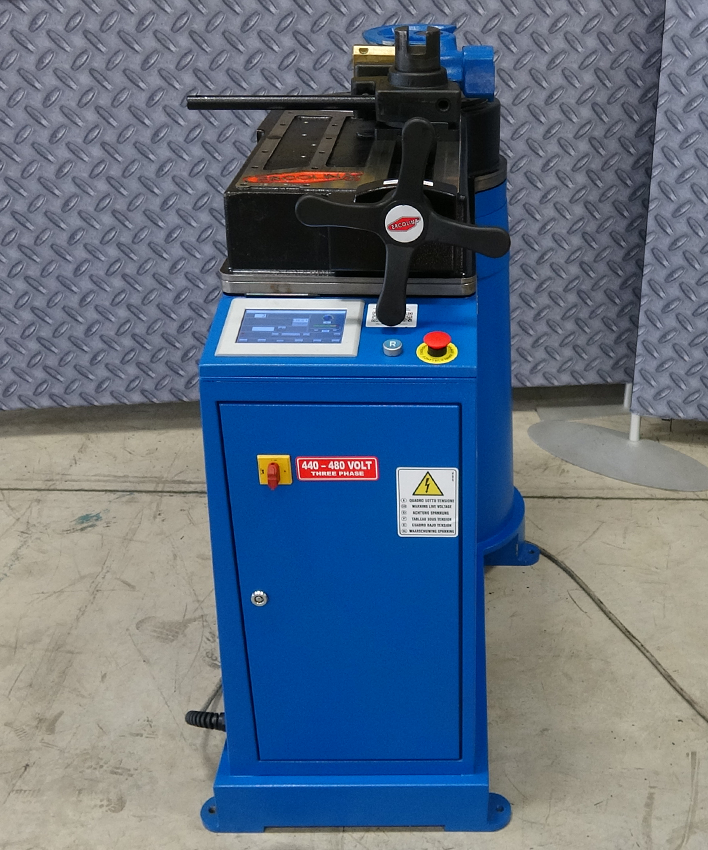

Touch screen control icon menu for easy access to auto and manual operating modes, programming (inch or metric), system diagnostics and multiple language capability
Quick-change tooling system with multiple radii available
Digital display of bend angle and bend speed
Bend any angle to 180° with independent material springback and speed compensation for each bend
Foot pedal control of bend and return functions

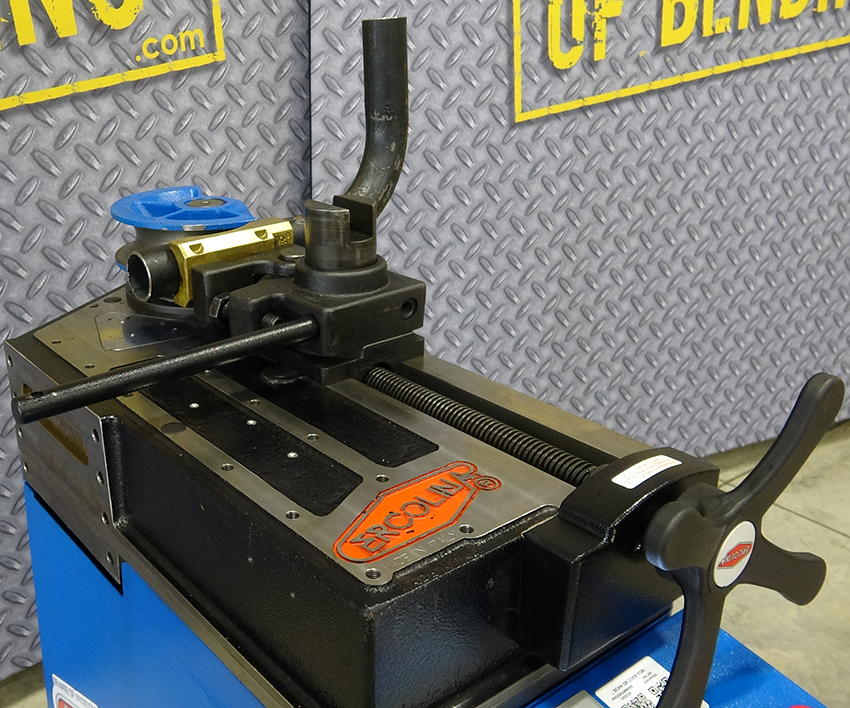

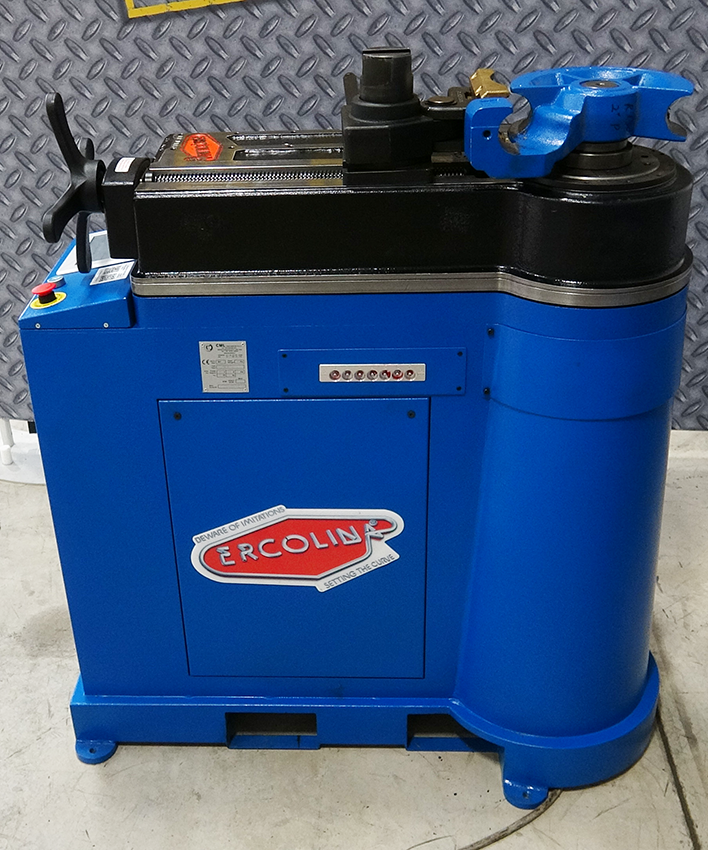

Swing away counterbending die vise for easy material handling
Counterbending die vise position monitored electronically for accuracy and repeatability
Heavy-duty steel gear case, right or left bend capable
No hydraulic components for quiet operation
Mandrel ready with optional accessory
Two axis positioning table for multiple and sequential bends available on special request
On screen machine diagnostics

Published capacities and specifications

Mild-steel tube	Up to 3 in. (.120 wall)
Pipe	Up to 2-1/2 in. Schedule 40 Grade A
Square tube	Up to 2.5 in. × .125 in. wall
Centerline radius	As small as 2D; maximum 16.5 in.
Power	220V or 440V 3 phase
Drive	Electromechanical; no hydraulic components

Published capacities are based on A53 Grade A material
at 48,000 psi tensile strength.
Higher-strength and heavy-wall materials reduce capacity.

Prepare Your Bend Data With Bend Genie

Build the part in 3D, review the bend sequence, prepare LRA information, and calculate springback before production. See how Bend Genie supports a better Ercolina machine and tooling discussion.

Explore Bend Genie for Ercolina Try Bend Genie

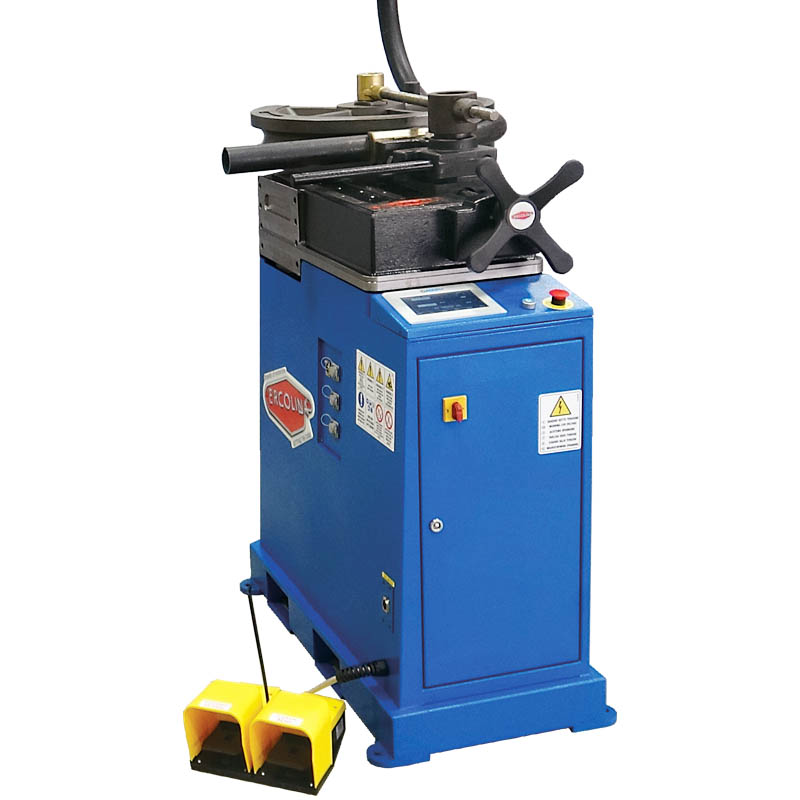

TB80 Top Bender®: Bends to 3″ Tube

Electrical Options:
220V Three Phase / 480V Three Phase

ROTARY DRAW ACCESSORIES

Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.

BENDING SOFTWARE

Use Ercolina’s BendGenie or Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications! Ideal for use with A40-P Two Axis Positioner.

Additional Savings when Purchasing Tooling Kit with Machine

TB80-4 (480V 3ph) with Pipe Kit Part #TB80-4P TB80 (220V 3ph) with Pipe Kit Part #TB802P
Pipe Size	CLR	Min. Wall	Center Former Part #	Counterbend Die Part #
1″	2.6	.133	153R067P1000	155P0100
1-1/4″	3.5	.140	153R090P1250	155P1250
1-1/2″	3.9	.145	153R100P1500	155P1500
2″	5.9	.109	153R150P2000	155P2000
2-1/2″	10.2	.203	153R260P2500-80	155P2500

Pipe Kit only Part #PIPEKIT6

TB80-4 (480V 3ph) with “Large Radius” Tube Kit Part #TB80-4TLR TB80 (220V 3ph) with “Large Radius” Tube Kit Part #TB80TLR
Pipe Size	CLR	Min. Wall	Center Former Part #	Counterbend Die Part #
3/4″	2.6	.035	153R067T0750	154T0750
1″	3.2	.035	153R082TT000	154T1000
1-1/4″	4.4	.035	153R112T1250	154T1250
1-1/2″	5.9	.049	153R150T1500	154T1500
1-3/4″	6.7	.065	153R170T1750	154T1750
2″	7.5	.065	153R190T2000	154T2000

“Large Radius” Tube Kit only Part #TUBEKIT5

Downloads

All Ercolina machines have downloadable material, available in PDF format. View Downloads
