CE70H3-RLI Angle Roll w/ Hydraulic 3 Axis Twist

Ercolina Professional Series - Angle Rollers, Ring Rolling Machines & Section Benders

ERCOLINA CE70H3-RLI ANGLE ROLL TUBE, PIPE AND PROFILE BENDER

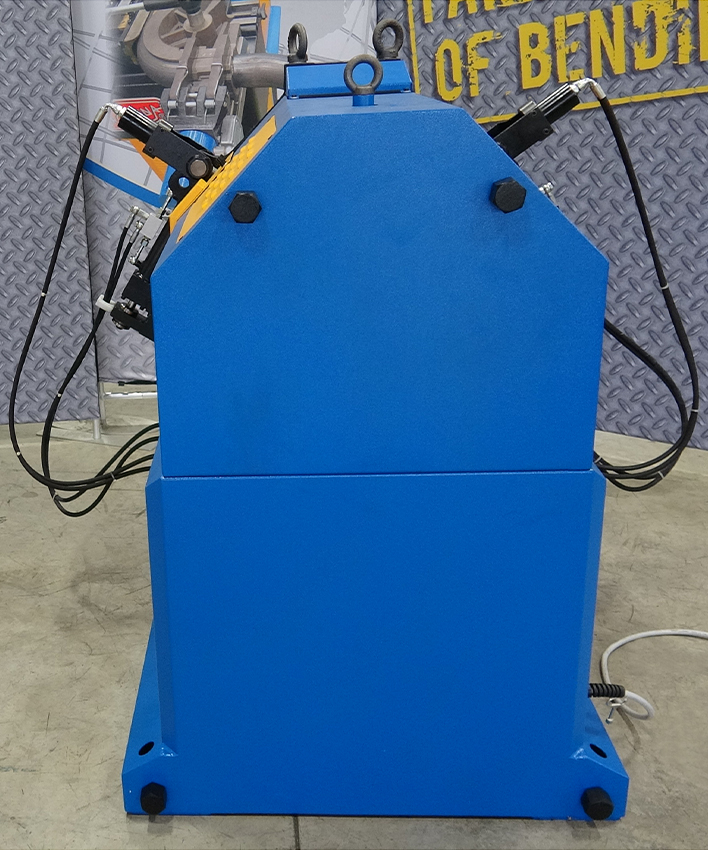

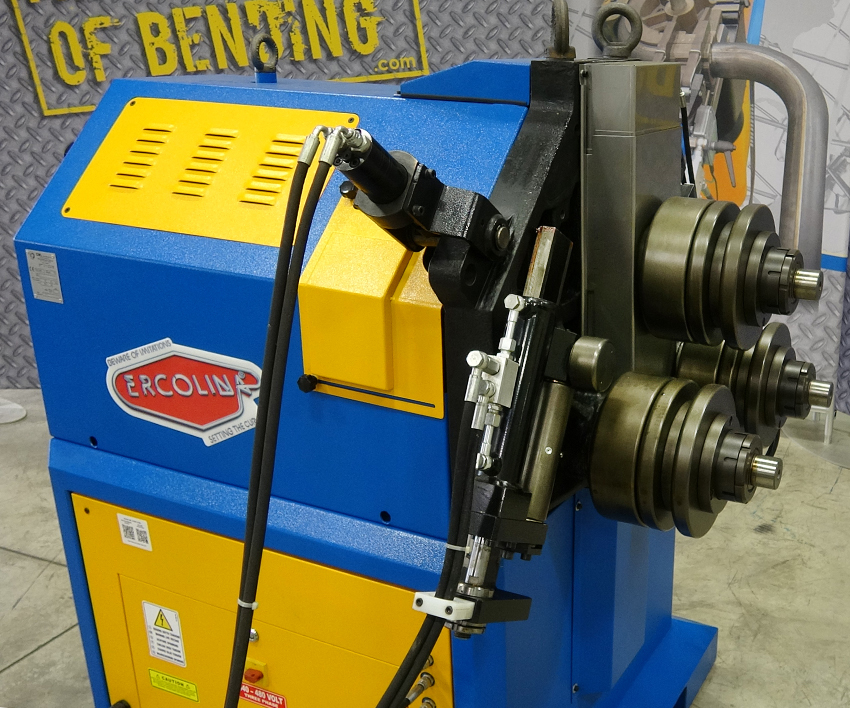

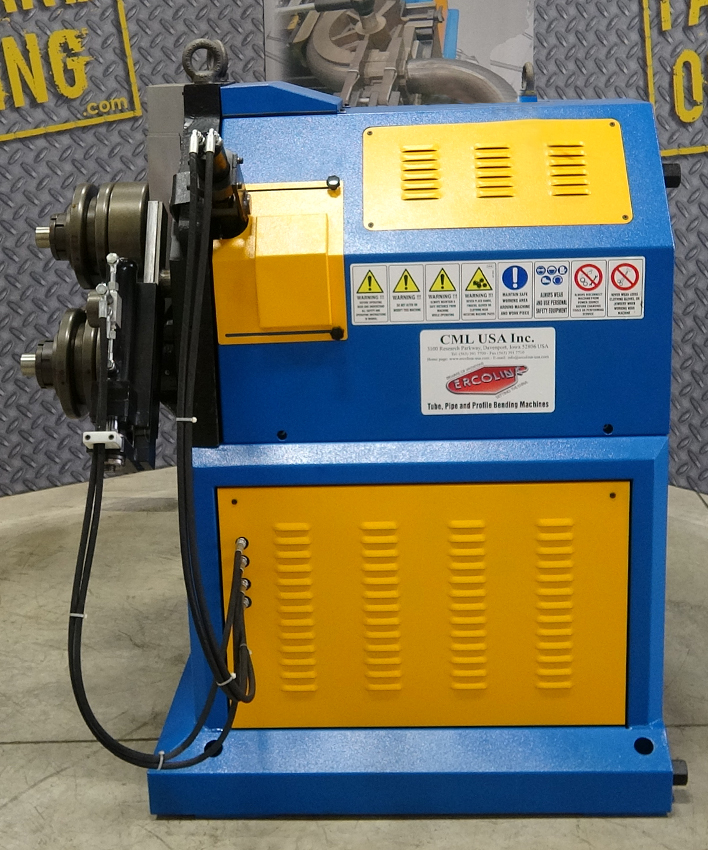

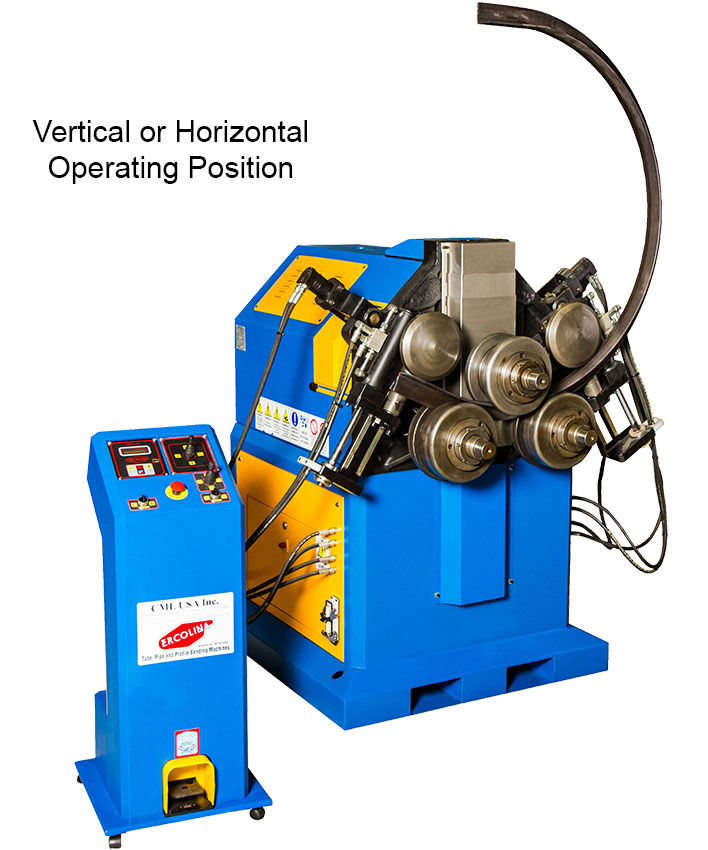

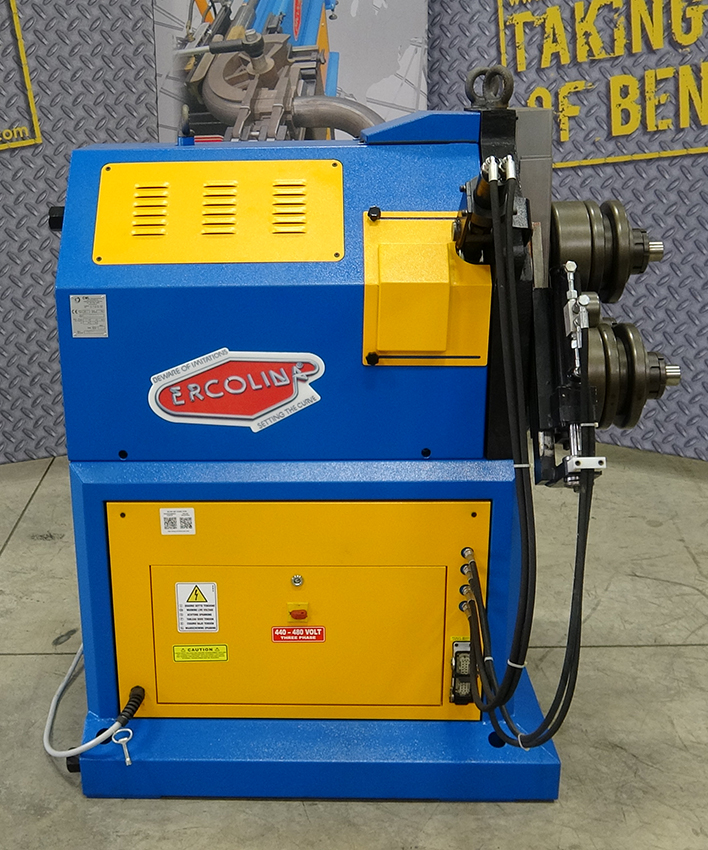

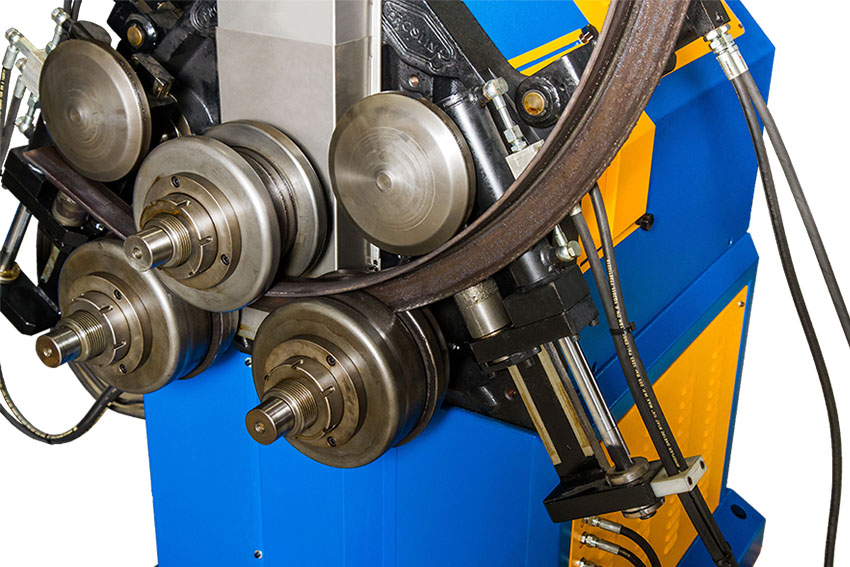

Ercolina’s CE70H3-RLI angle roll model has hydraulic center roll positioning with hydraulic anti-twist system for angle iron “Leg In” applications. This video features the CE70H3-RLI angle roll bending 1-1/2″ coil.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

Key Features

Bending speeds 20% faster than competitive machines

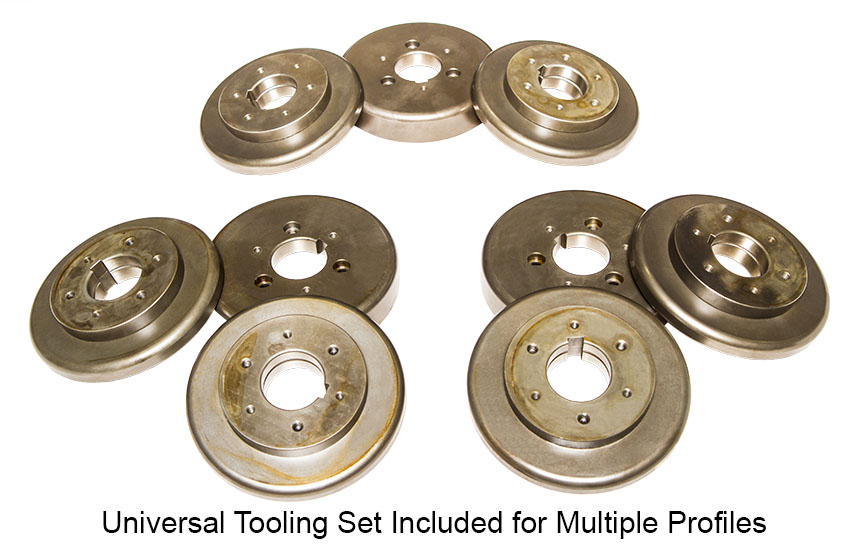

Universal tooling set included with each machine – 9.5″ O.D.
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models
Three axis hydraulic twist system for angle iron “Leg-in” applications

Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation

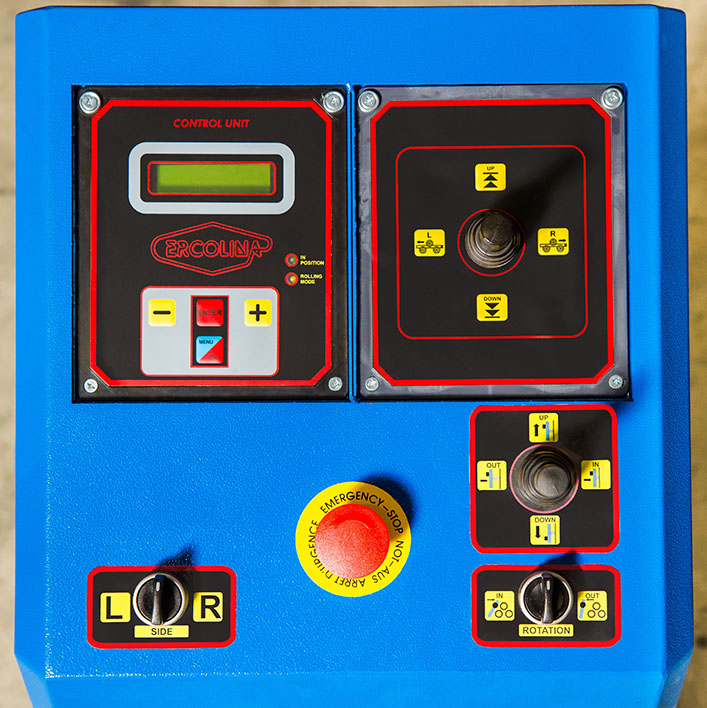

Programmable touch pad controls with digital center roll positioning display
Memory storage with eight (8) individual programs and unlimited passes

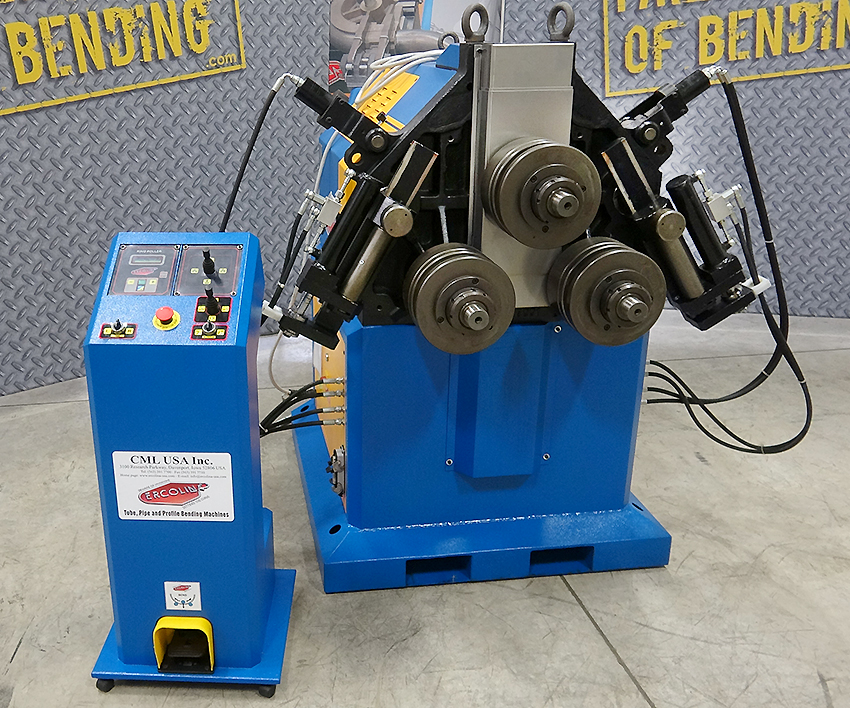

Remote control pendent with low voltage controls and foot pedal switch
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
Inline direct drive roll shaft system with motor and brake on each shaft

Capacities & Specifcations

Pipe (Max.)	3″ Sch. 40
Angle (Max.)	3″ x 3″ x 3/8″
Tube (Max.)	3-1/2″ – .216 wall
Roll Shaft Diameter	70mm
Center Roll Positioning	Hydraulic – 22 Tons
Shaft Speed	8 RPM
Universal Tooling (Included)	7″ O.D.
Programming	NC – Touchpad
Distance between Shafts	15″
Operating Voltage	220V or 480V 3ph
Length, Width, Height	54″ x 43″ x 57″

All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.

Available Accessories

Large Spiral Bending Accessory	Ideal for large pitch spiral bending applications.	CS7A11
Tie Bar Accessory	Recommended when bending large profiles or heavy wall material. Increases roll shaft rigidity and radii accuracy	CE70A2
Fabricator’s Measuring Set	Kit contains 160mm and 350mm chord gauges, a digital radius gauge and a digital angle degree protractor	KARC

Minimum Radius Guide on Mild Steel Material

Profile Type	Profile Dimensions	Min. CLR Inches	Wall
Pipe	1-1/2″ 3″	16 32	.145 .216
Tube	1-1/2″ 4″	16 30	.120 .187
Square Tube	1-1/2″ x 1-1/2″ 3″ x 3″	12 48	.120 .187
Rectangular Tube Hard way	1/2″ x 1-1/2″ 2″ x 4″	10 48	.120 .187
Rectangular Tube Easy way	1-1/2″ x 1/2″ 4″ x 2″	10 72	.120 .187
Round Solid	1-1/4″ 2″	6* 16	NA NA
Square Solid	1-1/2″ 2″	10* 16	NA NA
Rectangular Solid Hard way	1/2″ x 1-1/2″ 1/2″ x 3″	14 32	NA NA
Rectangular Solid Easy way	1-1/2″ x 1/2″ 4″ x 1″	12 16	NA NA
Angle “Leg Out”	1-1/2″ x 1-1/2″ 3″ x 3″	14 28	.187 .375
Angle “Leg In”	1-1/2″ x 1-1/2″ 3″ x 3″	16 32	.187 .375
C “Leg Out”	2″ x 1″ 4″ x 1-1/2″	14 24	.187 .187
C “Leg In”	2″ x 1″ 4″ x 1-1/2″	14 24	.125 .187
