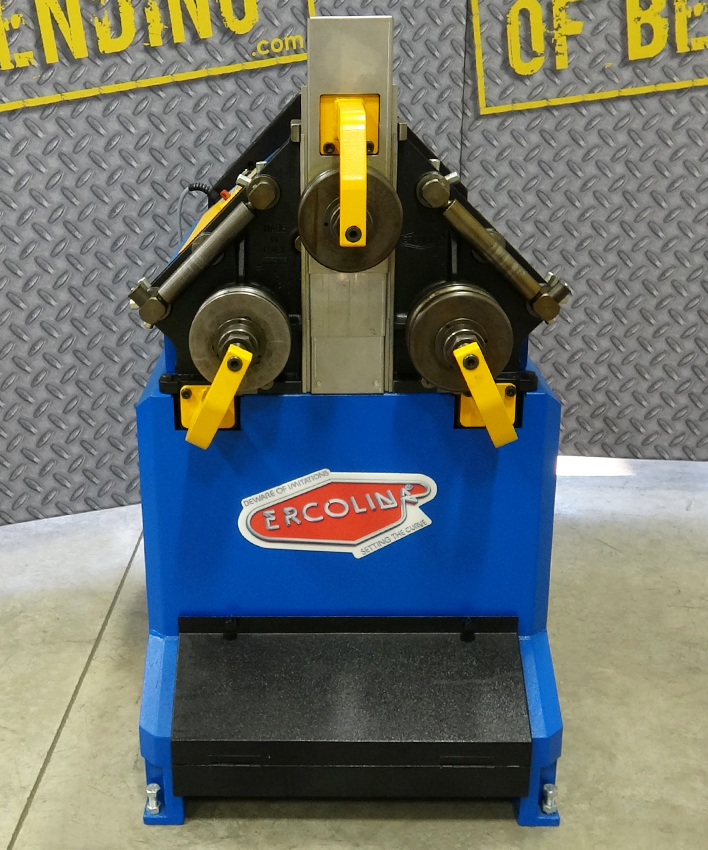

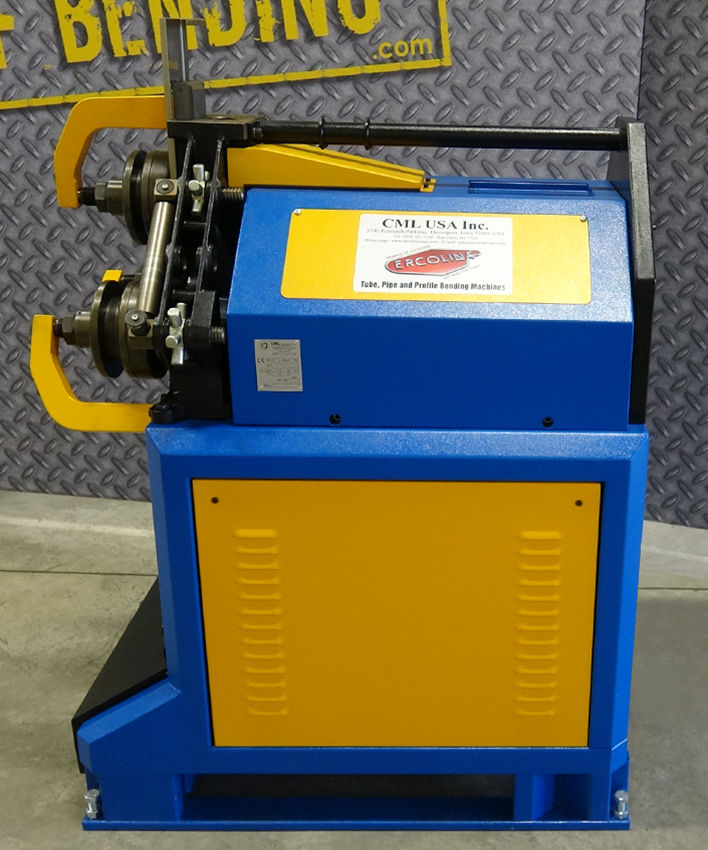

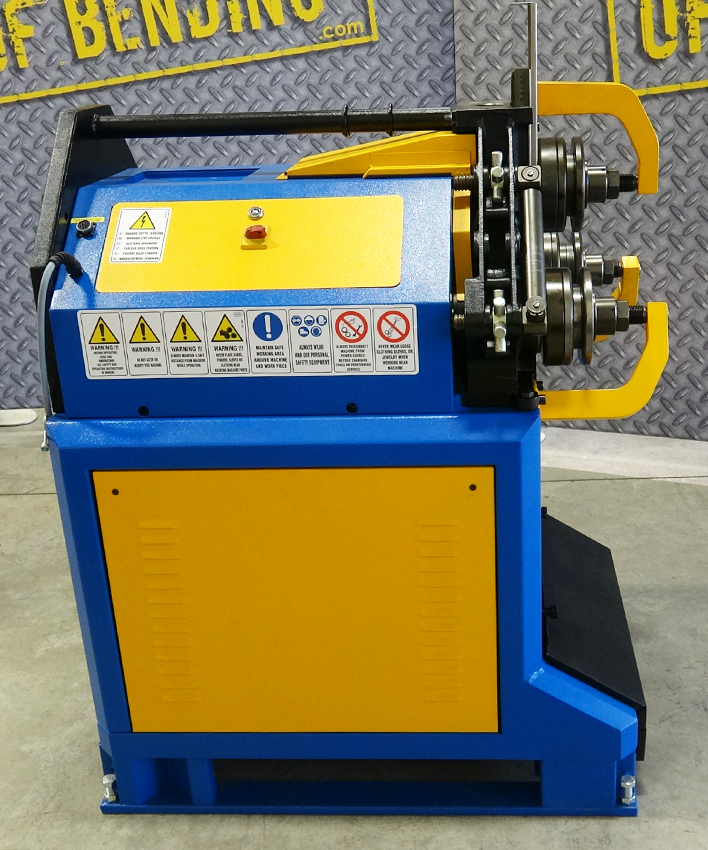

Ercolina CE60H3 Angle Roll

Ercolina’s CE60H3 angle roll model offers hydraulic center roll positioning and is shown here rolling 1-1/2”, .120 wall 1008/1010 mild steel tube to a 24” diameter with a 6” pitch!

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

Key Features

Bending speeds 20% faster than competitive machines

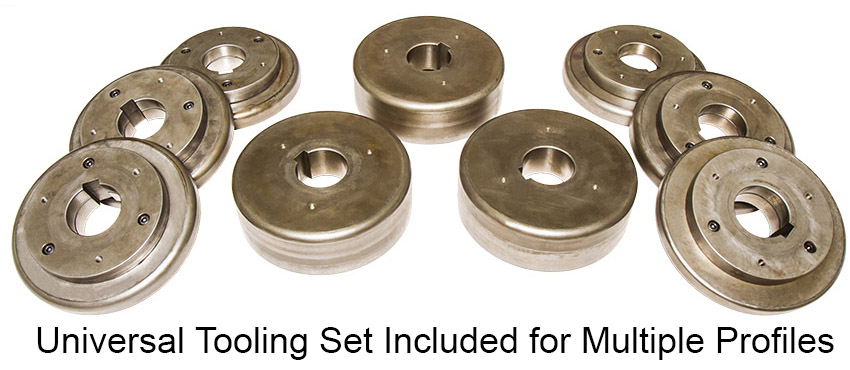

Universal tooling set included with each machine – 7″ OD
Uses same tooling as CE50

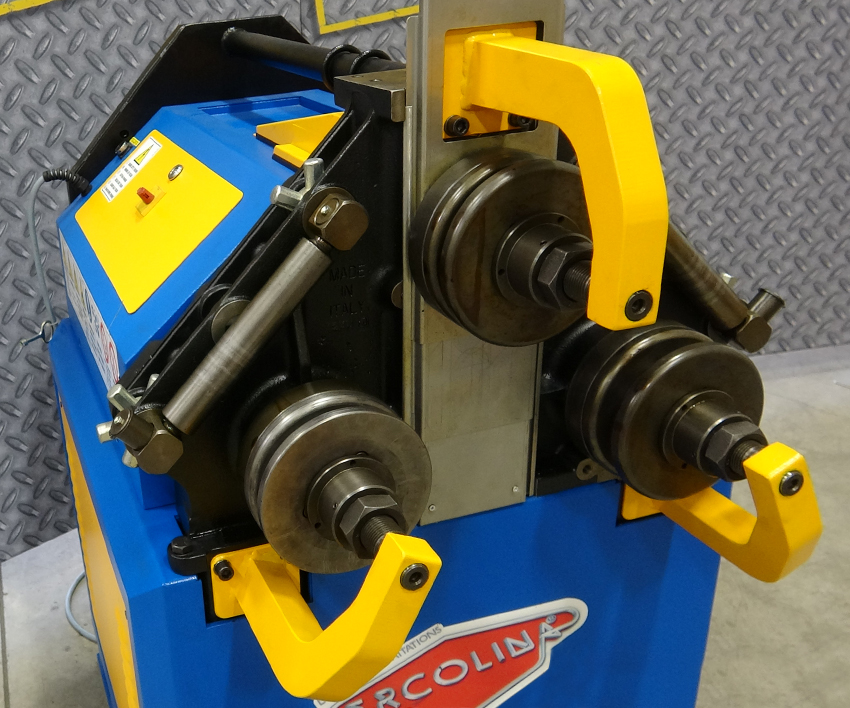

Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Heavy duty structure and rigid components for high section modulus ratings
Reinforced engineered mainframe design proven to outperform competitive models
Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation

Touchpad controls with digital center roll positioning
Tie bar supports for each shaft
Hydraulic machine with memory storage has eight (8) individual programs and unlimited passes

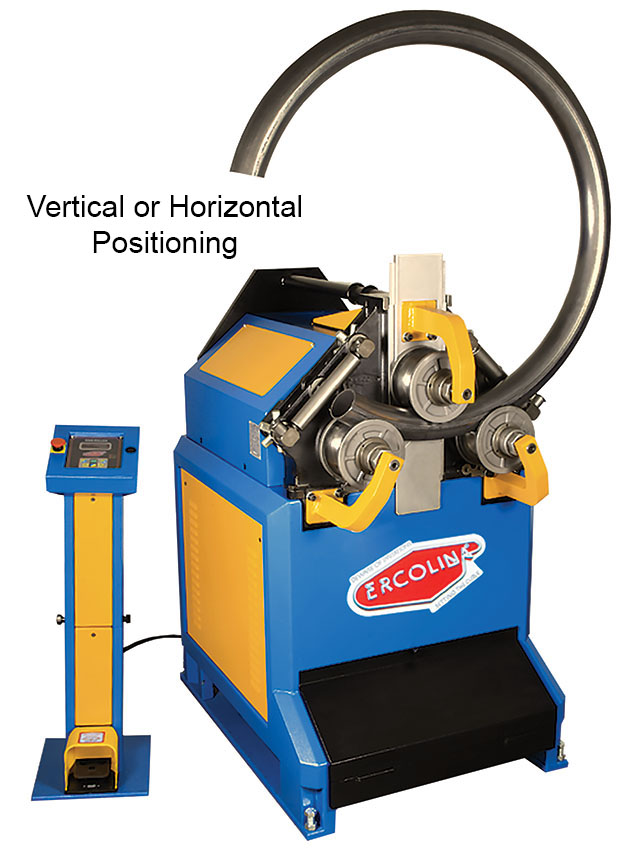

Remote pendent with low voltage controls and foot pedal switch

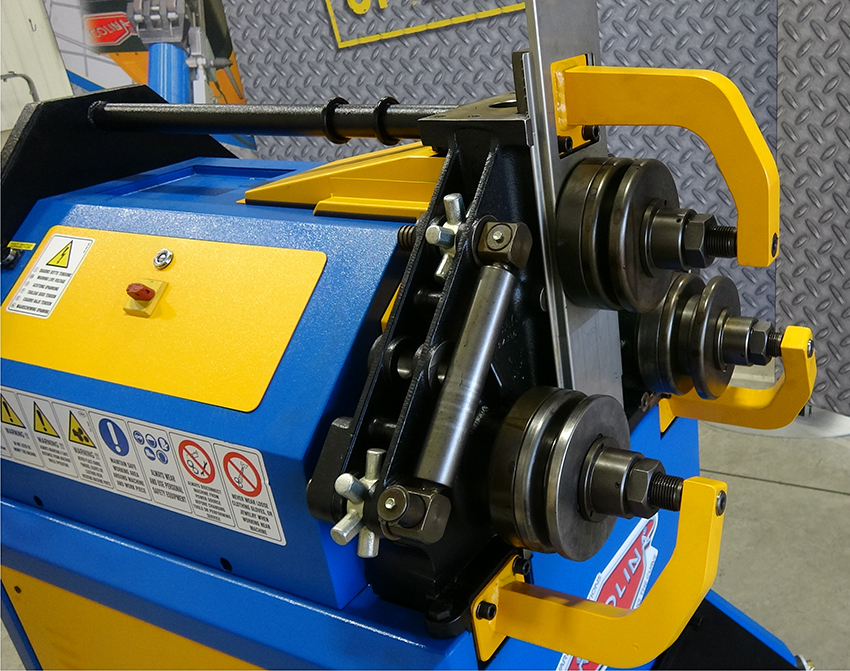

Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
In-line direct drive roll shaft system 3-roll driven
Optional Anti-twist correction system for angle iron “Leg In” applications
All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.

Capacities & Specifcations

Pipe (Max.)	3″ Sch. 10
Angle (Max.)	2-1/2″ x 2-1/2″ x 3/8″
Tube (Max.)	3-1/2″ – .120 wall
Roll Shaft Diameter	50mm
Center Roll Positioning	Hydraulic – 17.6 Tons
Shaft Speed	9 RPM
Universal Tooling (Included)	7″ O.D.
Programming	NC – Touchpad
Distance between Shafts	15″
Operating Voltage	220V or 480V 3ph
Length, Width, Height	48″ x 29″ x 52″

All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.

Available Accessories

Anti Twist Device	Required for angle iron “leg in” applications	C5A4
Scroll Curling Device	Attaches to CE60 angle rolls to produce ornamental scroll-work	CR5A8
Large Spiral Bending Accessory	Ideal for large pitch spiral bending applications.	CS5A11
Small Radius Tooling	Adjustable tooling set for small radius bending applications	C5RR
Fabricator’s Measuring Set	Kit contains 160mm and 350mm chord gauges, a digital radius gauge and a digital angle degree protractor	KARC

Minimum Radius Guide on Mild Steel Material

Profile Type	Profile Dimensions	Min. CLR Inches	Wall
Pipe	3/4″ 2″ 3″	8 20 30	.113 .154 .120
Tube	1″ 2-1/2″ 3-1/2″	8 28 30	.120 .203 .187
Square Tube	3/4″ x 3/4″ 2″ x 2″ 2-1/2″ x 2-1/2″	6 20 30	.083 .120 .216
Rectangular Tube Hard way	1/2″ x 1″ 1-1/2″ x 2-1/2″ 1-1/2″ x 4″	6 18 36	.083 .120 .187
Rectangular Tube Easy way	1-1/4″ x 1/2″ 2-1/2″ x 1-1/2″ 4″ x 1-1/2″	6 24 60	.083 .120 .187
Round Solid	1″ 1-3/4″	8* 16	NA NA
Square Solid	3/4″ 1-1/4″ 1-3/4″	4* 10 20	NA NA NA
Rectangular Solid Hard way	3/8″ x 3/4″ 1/2″ x 2″ 3/4″ x 3″	6* 8 40	NA NA NA
Rectangular Solid Easy way	2″ x 1/2″ 4″ x 3/4″	8 16	NA NA
Angle “Leg Out”	1″ x 1″ 2″ x 2″ 2-1/2″ x 2-1/2″	12 20 26	.156 .236 .236
Angle “Leg In”	1″ x 1″ 2″ x 2″ 2-1/2″ x 2-1/2″	14 28 36	.156 .236 .236

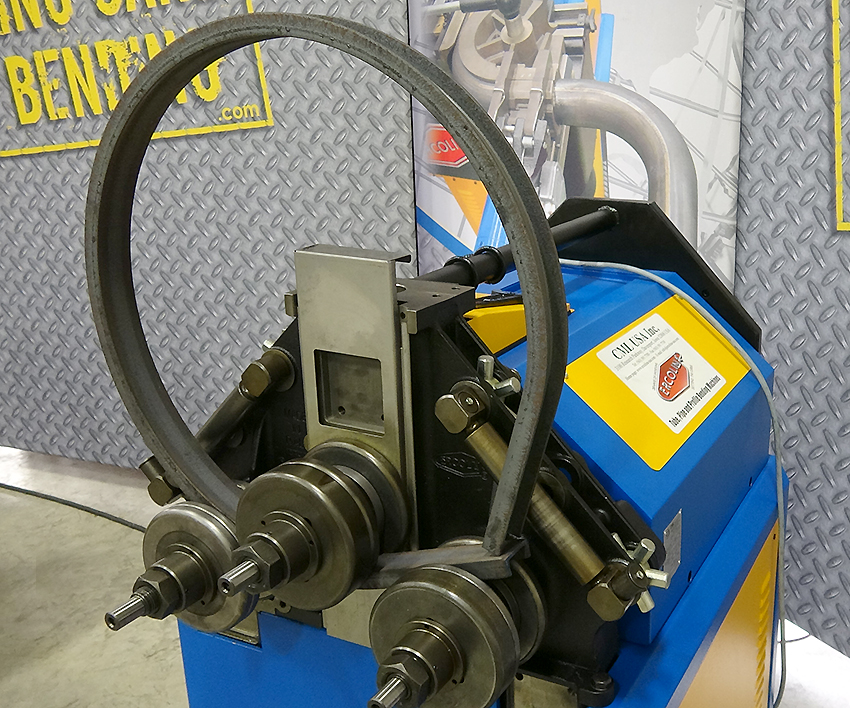

C “Leg Out”	1-1/2″ x 3/4″ 3-1/8″ x 1″	10 18	.156 .236
C “Leg In”	1-1/2″ x 3/4″ 4″ x 1-1/2″	10 18	.203 .236
