CML USA, Inc.
North American Office of Ercolina® Tube Benders
Ercolina TB60 Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.
Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.
| Mild-steel tube | Up to 2-1/2 in. |
| Pipe | Up to 2 in. Schedule 40 |
| Square tube | Up to 2 in. × .125 in. wall |
| Centerline radius | As small as 2D; maximum 15 in. |
| Power | 220V or 480V 3ph (220V single phase available) |
| Drive | Electromechanical; no hydraulic components |
Published capacities are based on A53 Grade A material
at 48,000 psi tensile strength.
Higher-strength and heavy-wall materials reduce capacity.
Build the part in 3D, review the bend sequence, prepare LRA information, and calculate springback before production. See how Bend Genie supports a better Ercolina machine and tooling discussion.

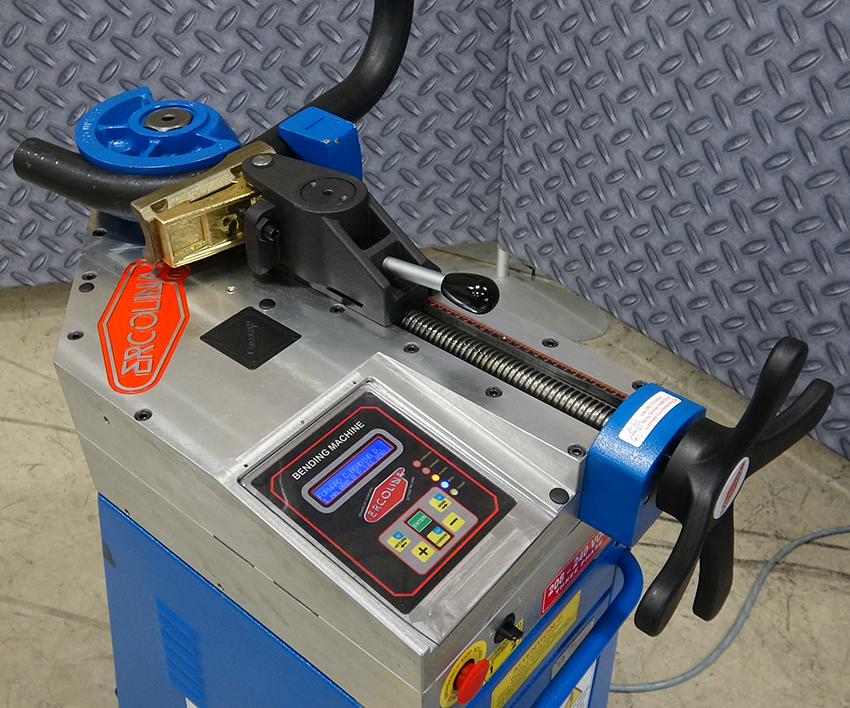

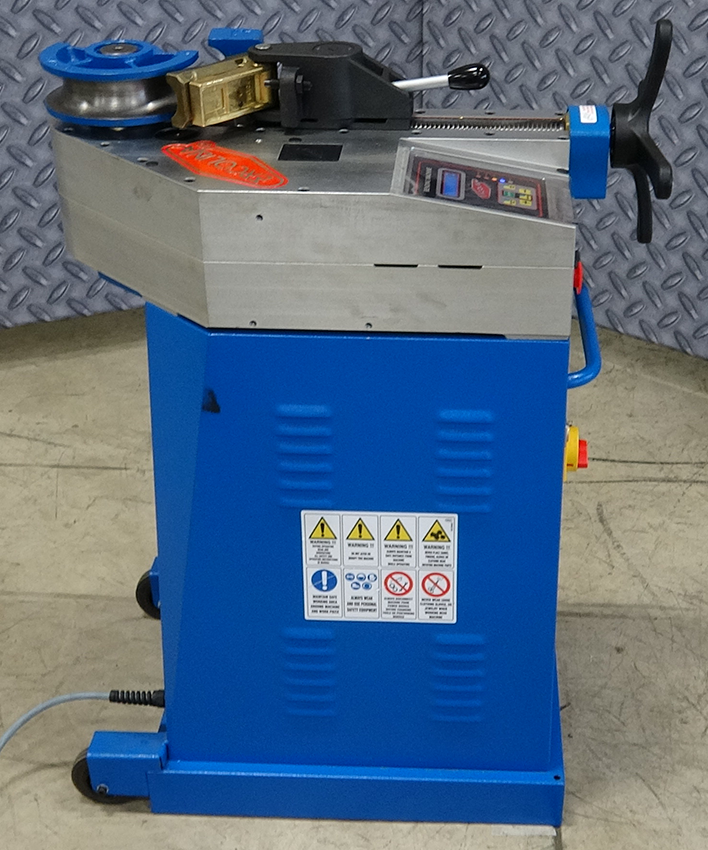

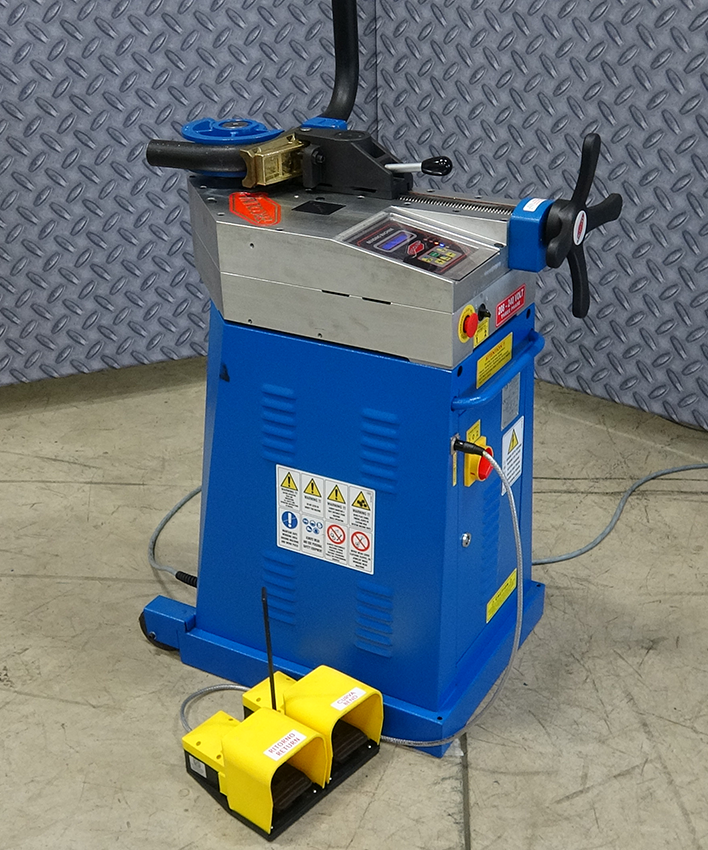

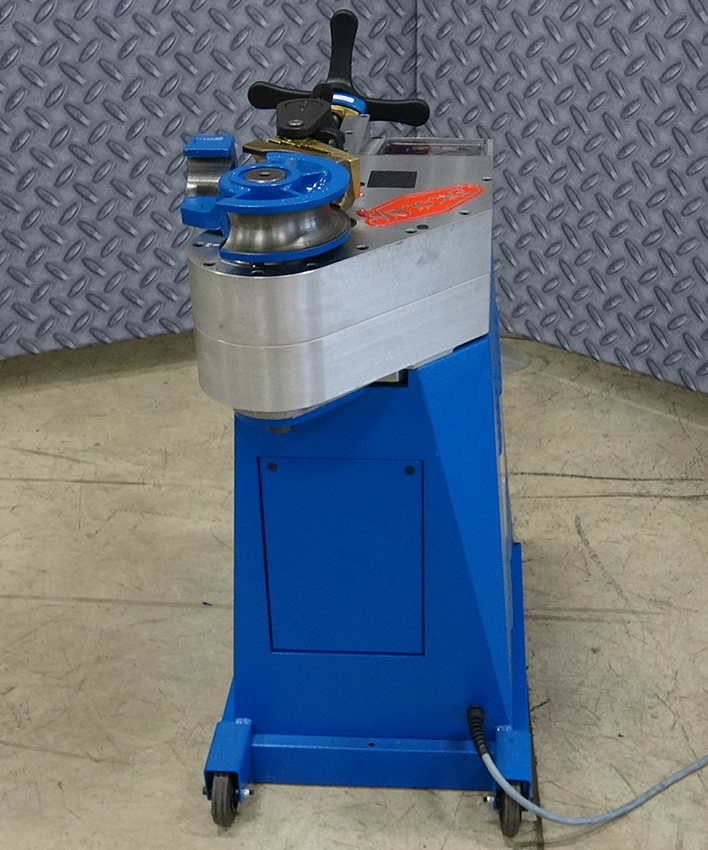

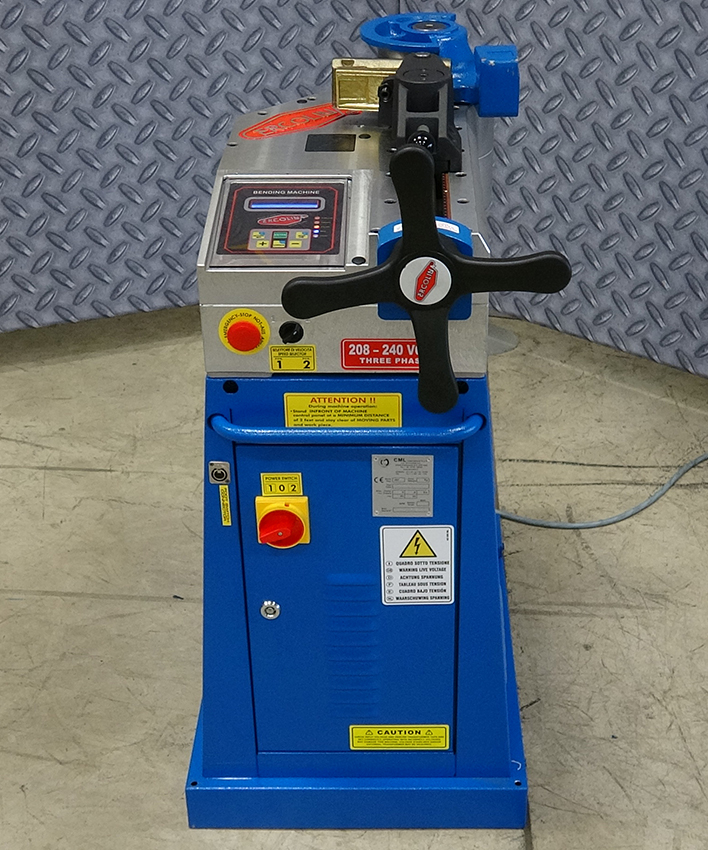

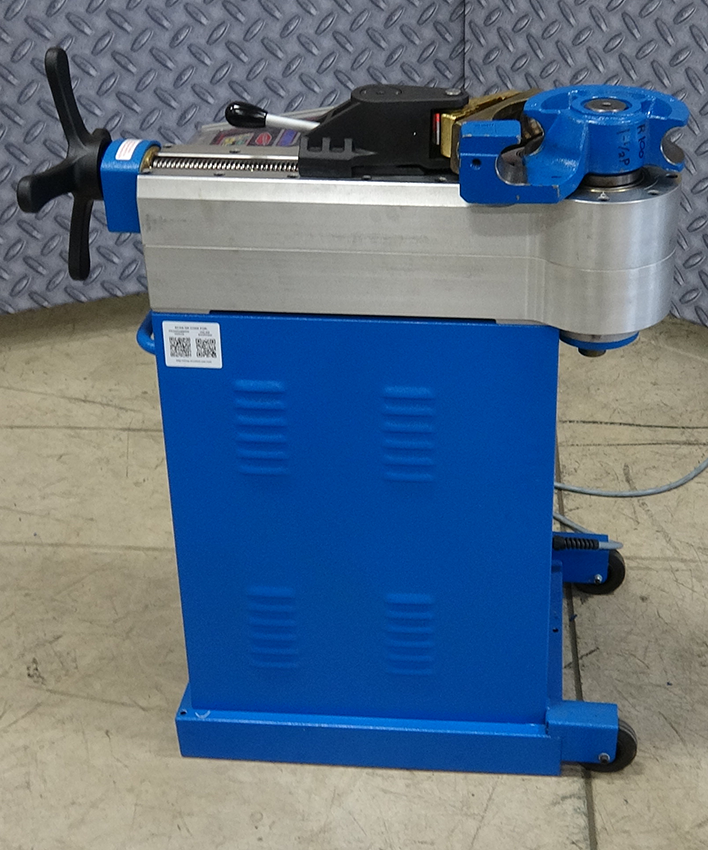

TB60 Top Bender®: Bends to 2-1/2″ Tube
Electrical Options:
480V Three Phase standard (220V Three Phase optional)
ROTARY DRAW ACCESSORIES
Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.
A40/P TWO AXIS POSITIONER
A40-P Two Axis Positioner is ideal for repetitive parts and left and right mirror images. Use with Ercolina’s Super Bend-Tech SE software to quickly layout and produce drawings for bending applications.
BENDING SOFTWARE
Use Ercolina’s BendGenie or Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications! Ideal for use with A40-P Two Axis Positioner.
