Super Bender® SB48 Tube, Pipe and Profile Bending Machine

Ercolina Professional Series - Non-Mandrel Rotary Draw Benders

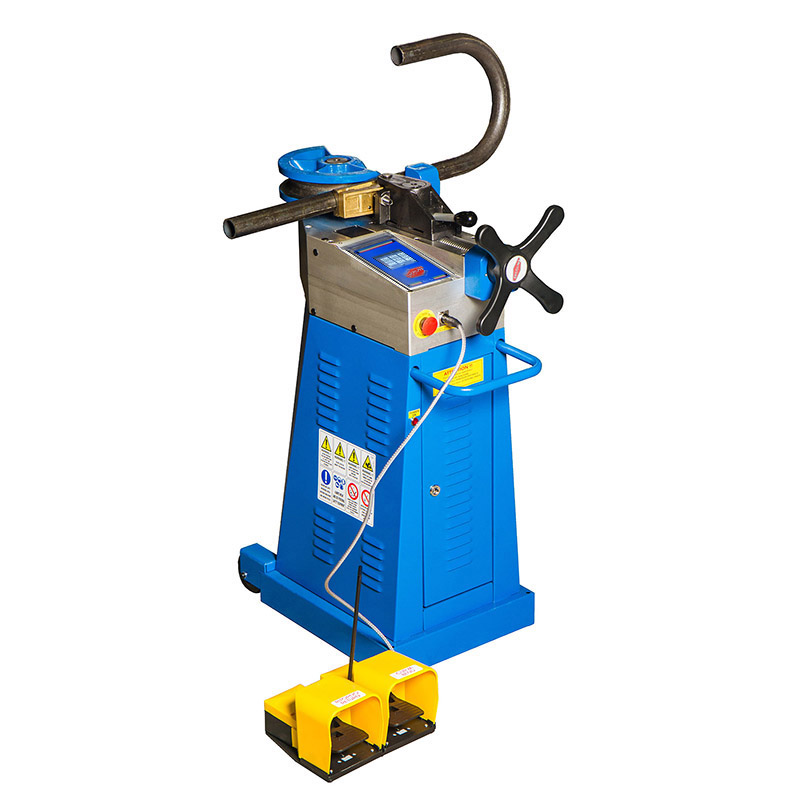

Ercolina Super Bender SB48 Programmable Rotary Draw Tube Bender

Produce repeatable rotary draw bends in tube, pipe, square tube, solids and profiles—with no hydraulic components.

The Ercolina SB48 combines programmable bend-angle control with a compact, portable design. Its touchscreen, electronic counterbending-die monitoring and springback compensation help operators repeat bends while reducing manual setup decisions.

Get an SB48 application review
Send material, OD, wall, CLR, bend angle, number of bends and production quantity.

SB48 features

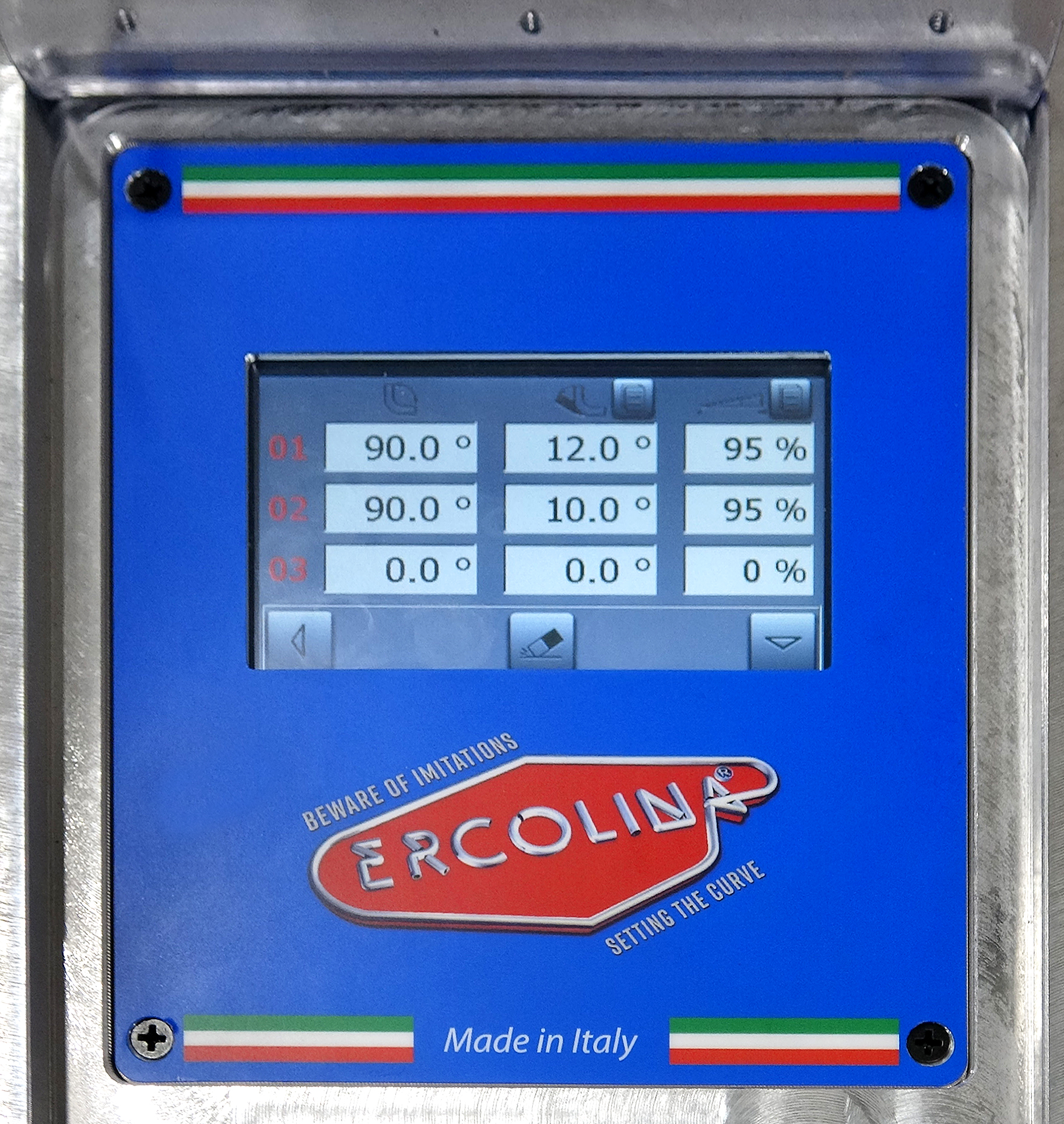

Multilingual touchscreen bend-angle programming and diagnostics

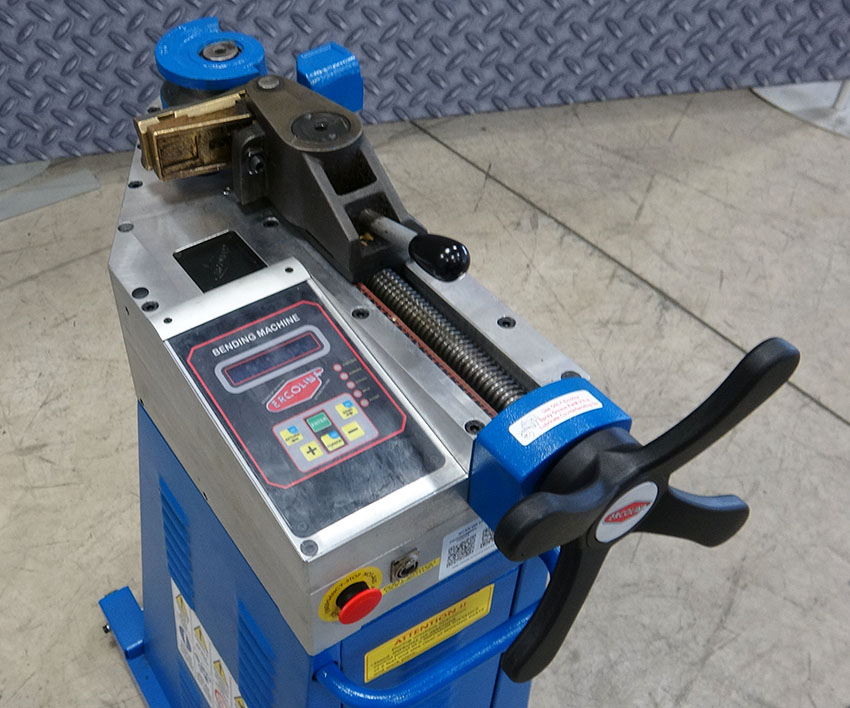

Digital bend-angle display and material springback compensation
Electronic counterbending-die position monitoring

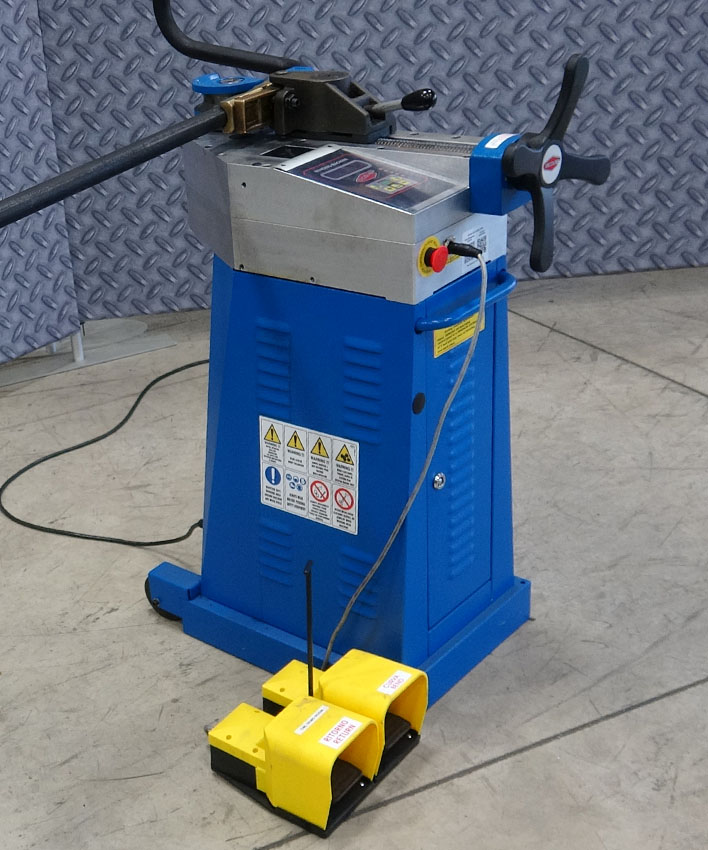

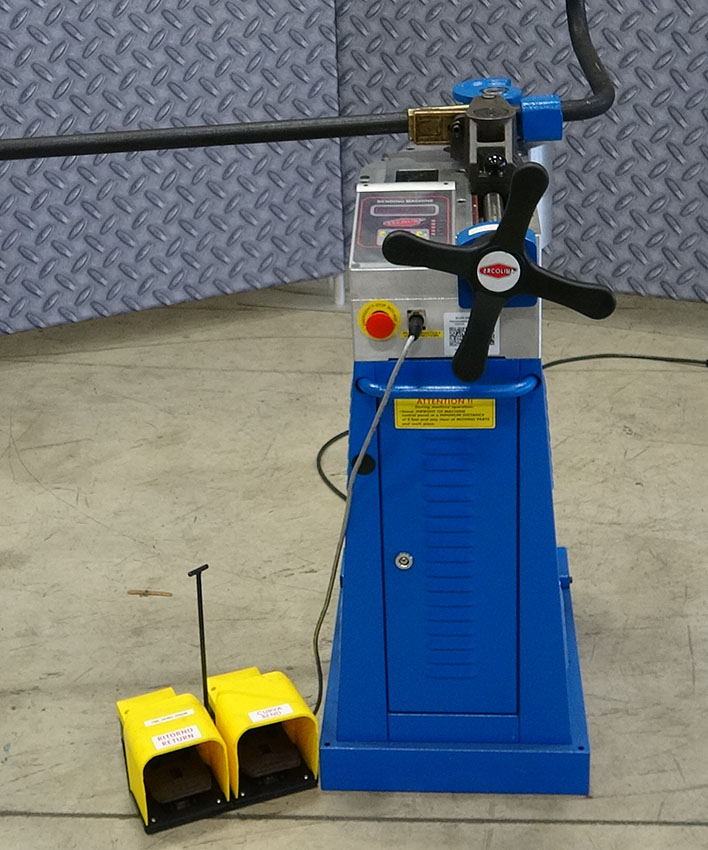

Foot-pedal operation
Quick-change tooling with multiple radii available
Accepts the A40-P two-axis positioner

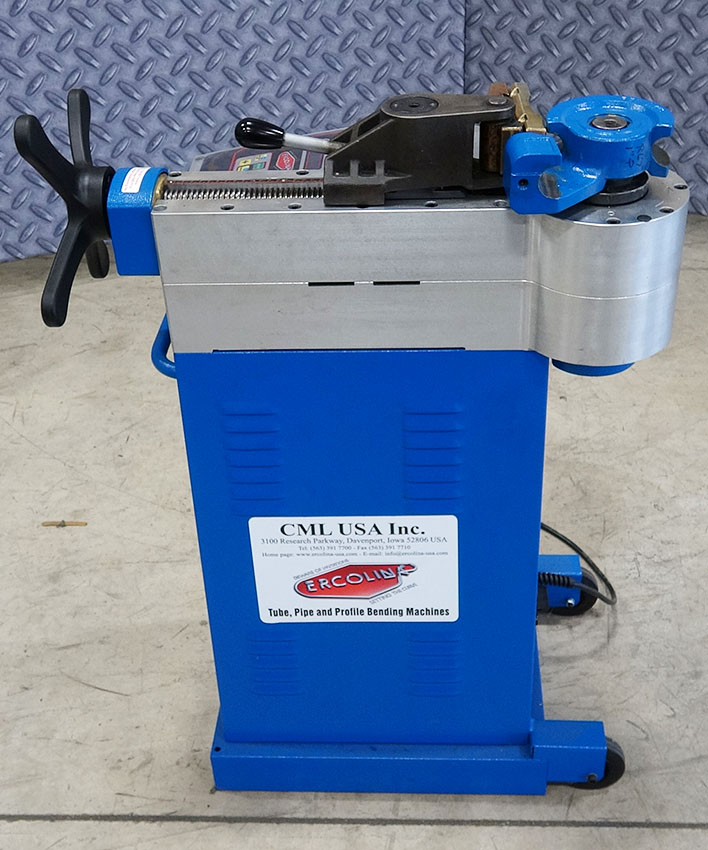

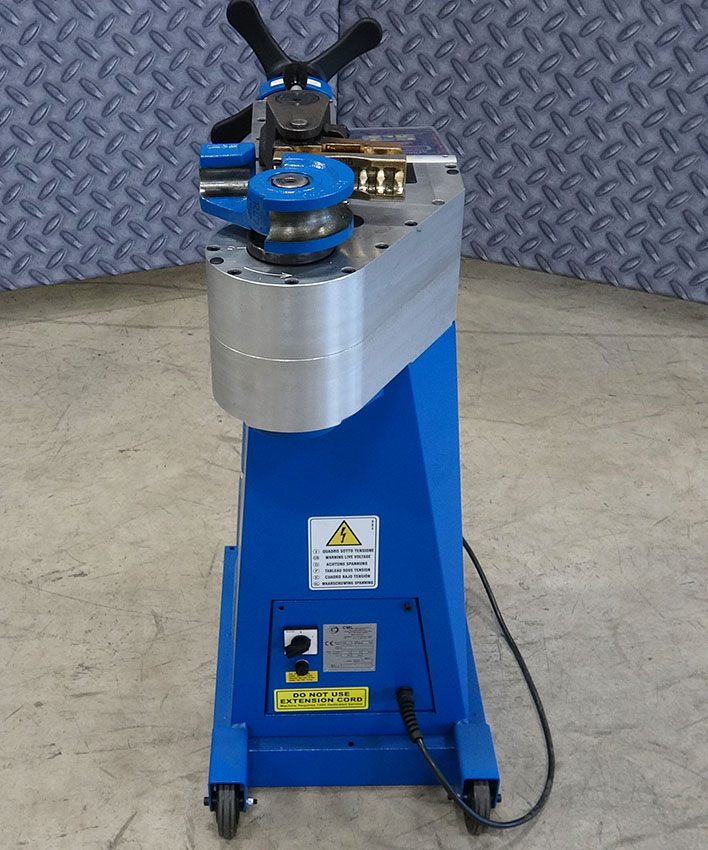

Portable base wheels and lift handle

Frequently asked questions

Can the SB48 bend 2-inch tube?
Yes, within the published material assumptions. Wall thickness, alloy and bend radius must be reviewed.

Is the SB48 hydraulic?
No. The SB48 has no hydraulic components.

Can it produce repeat parts?
Yes. Programmable angle control, springback compensation and electronic die-position monitoring support repeatability. The A40-P positioner can support multi-bend parts.

Published capacities and specifications

Mild-steel tube	Up to 2 in.
Pipe	Up to 1-1/2 in. Schedule 40
Square tube	Up to 1-1/2 in. × .083 in. wall
Centerline radius	As small as 2D; maximum 8-7/8 in.
Power	110V single phase
Drive	Electromechanical; no hydraulic components

Published capacities are based on A53 Grade A material
at 48,000 psi tensile strength.
Higher-strength and heavy-wall materials reduce capacity.

Prepare Your Bend Data With Bend Genie

Build the part in 3D, review the bend sequence, prepare LRA information, and calculate springback before production. See how Bend Genie supports a better Ercolina machine and tooling discussion.

Explore Bend Genie for Ercolina Try Bend Genie

Super Bender SB48: Bends to 2″ Tube

Electrical Options:
110V Single Phase

Programming Instructions

ROTARY DRAW ACCESSORIES

Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.

A40/P TWO AXIS POSITIONER

A40-P Two Axis Positioner is ideal for repetitive parts and left and right mirror images. Use with Ercolina’s Super Bend-Tech SE software to quickly layout and produce drawings for bending applications.

BENDING SOFTWARE

Use Ercolina’s BendGenie or Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications! Ideal for use with A40-P two axis positioner.

Additional Savings when Purchasing Tooling Kit with Machine

SB48 with Pipe Kit Part #SB48P
Pipe Size	CLR	Min. Wall	Center Former Part #	Counterbend Die Part #
1/2″	1.8	.109	153R046P0500	155P0500
3/4″	2.2	.113	153R056P0750	155P0750
1″	2.6	.133	153R067P1000	155P1000
1-1/4″	3.5	.140	153R090P1250	155P1250
1-1/2″	3.9	.145	153R100P1500	155P1500

Pipe Kit only Part #PIPEKIT2

SB48 with “Small Radius” Tube Kit Part #SB48TSR
Pipe Size	CLR	Min. Wall	Center Former Part #	Counterbend Die Part #
3/4″	2.6	.035	153R067T0750	154T0750
7/8″	2.2	.065	153R056T0875	154T0875
1″	2.6	.065	153R067T1000	154T1000
1-1/4″	3.2	.083	153R082T1250	154T1250
1-1/2″	3.9	.083	153R100T1500	154T1500

“Small Radius” Tube Kit only Part #TUBEKIT2SR

SB48 with “Large Radius” Tube Kit Part #SB48T
Pipe Size	CLR	Min. Wall	Center Former Part #	Counterbend Die Part #
3/4″	2.6	.035	153R067T0750	154T0750
7/8″	2.6	.035	153R067T0875	154T0875
1″	3.2	.035	153R082T1000	154T1000
1-1/4″	4.4	.035	153R112T1250	154T1250
1-1/2″	5.9	.049	153R150T1500	154T1500
1-3/4″	6.7	.065	153R170T1750	154T1750
“Large Radius” Tube Kit only Part #TUBEKIT2

Downloads

All Ercolina machines have downloadable material, available in PDF format. View Downloads
