HB60 Hot Shot Hydraulic Rotary Draw Tube and Pipe Bender

Ercolina Professional Series - Non-Mandrel Rotary Draw Benders

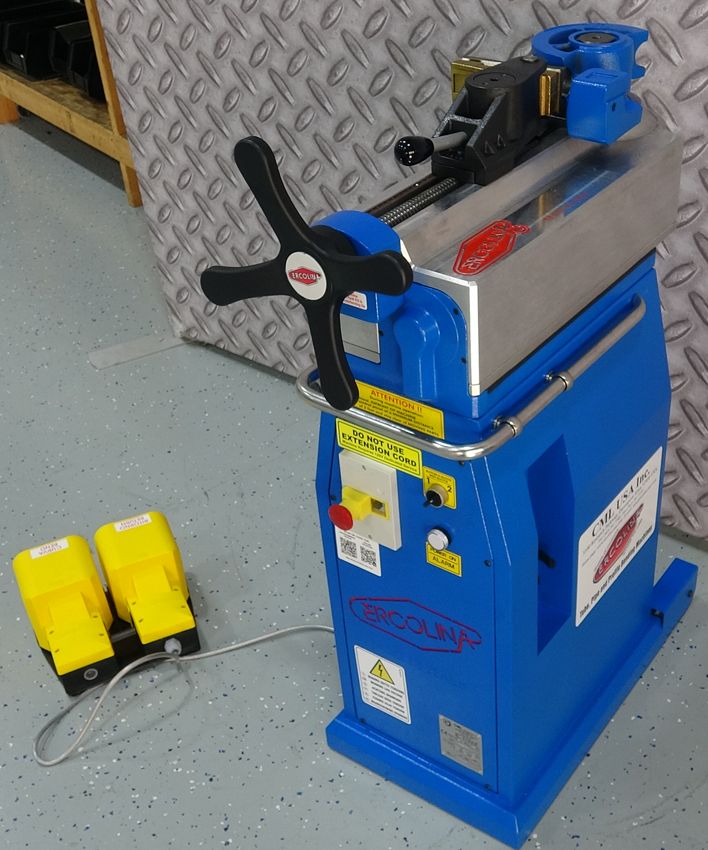

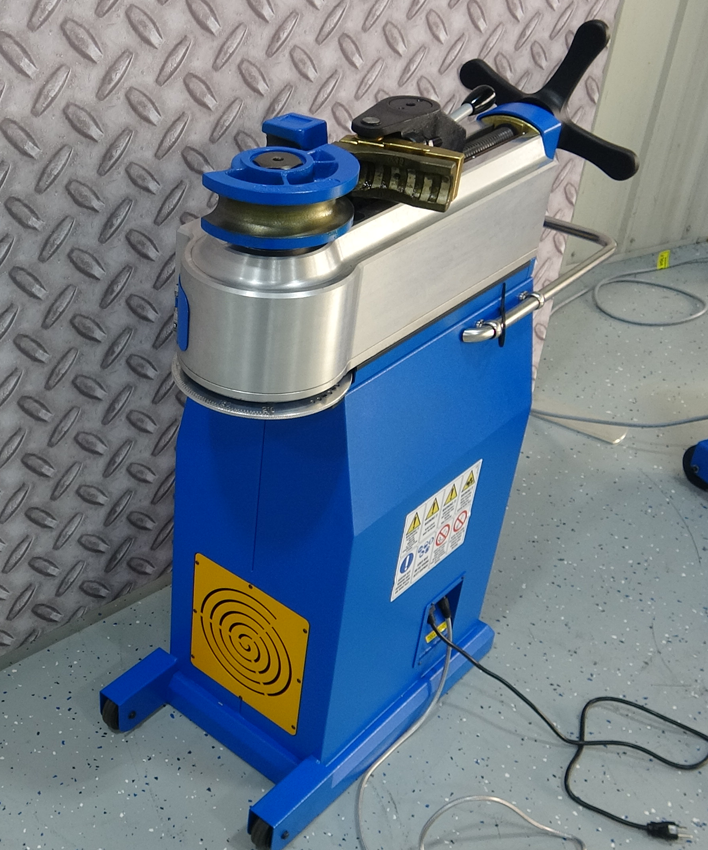

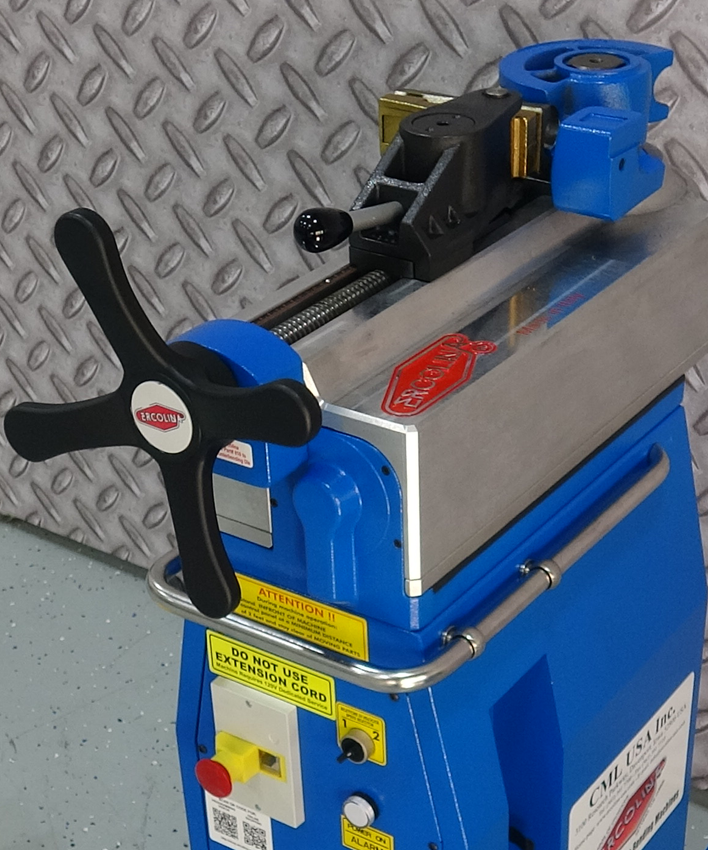

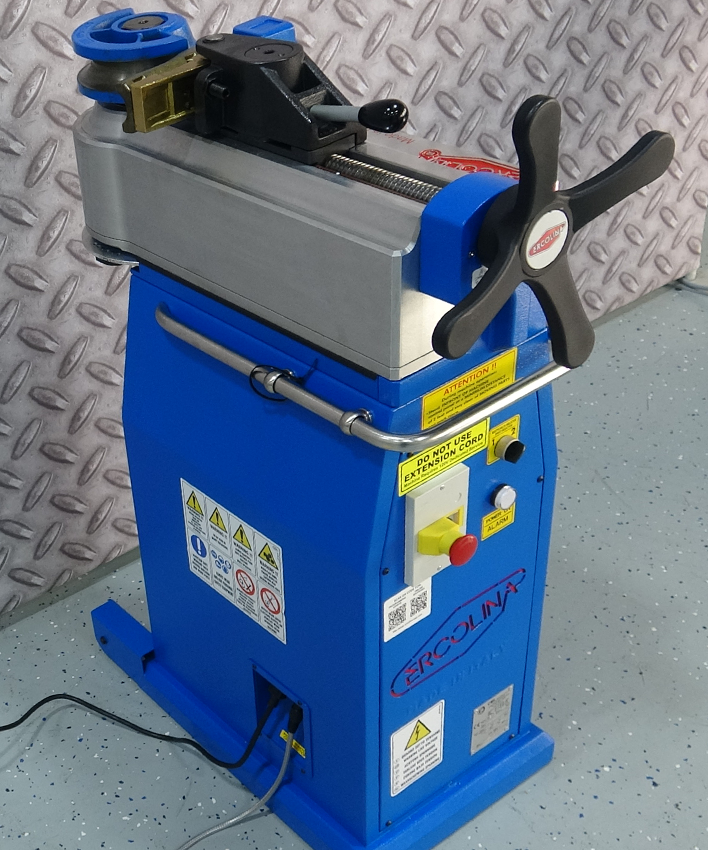

Ercolina HB60 Hydraulic Rotary Draw Tube and Pipe Bender

Bend up to 2-inch mild-steel tube and 1-1/2-inch Schedule 40 pipe with a compact, powerful hydraulic rotary draw bender.

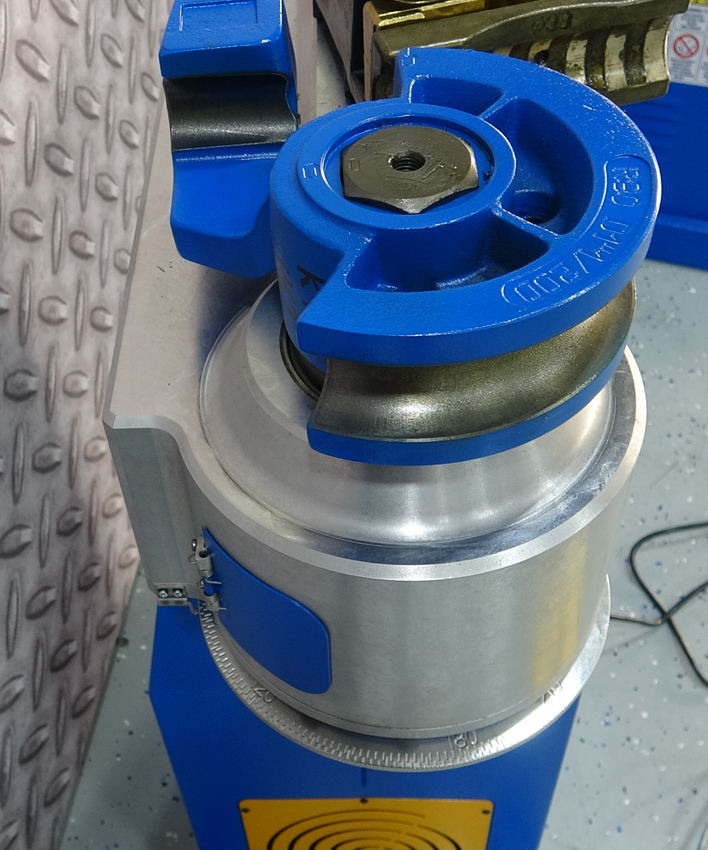

The Ercolina HB60 Hot Shot is designed for fabricators that need consistent, repeatable bends without ratcheting or repositioning. Its hybrid hydraulic gear-driven action completes bends from 0 to 180 degrees, while the degree wheel and automatic stop help operators reproduce bend angles.

Choose the HB60-M2 for 120V single-phase power or the HB60-T for 480V three-phase power. CML USA supports applications with tooling recommendations, demonstrations, parts, service and operator assistance.

Will the HB60 bend your part?
Send the material, outside diameter, wall thickness, centerline radius, bend angle and production quantity for a capacity and tooling review. info@ercolina-usa.com

Why choose the HB60?

Continuous rotary draw action without ratcheting
Repeatable automatic angle stop
Swing-away counterbending die vise
Quick-change Ercolina tooling
Compact footprint with swiveling bend head
120V option for shops without three-phase power

Applications and tooling

Typical work includes handrails, frames, furniture, automotive components, hydraulic tubing, exhaust, maintenance fabrication and repeat parts. Tooling must match the material, OD, wall and radius. Available options include bend tooling, counterbending dies, extraction equipment for square tube and the A40-P positioner.

Frequently asked questions

Can it bend Schedule 40 pipe?
Yes. Published maximum pipe capacity is 1-1/2-inch Schedule 40 under the catalog’s material assumptions.

Does it require three-phase power?
No. The HB60-M2 uses 120V single-phase power; the HB60-T uses 480V three-phase.

Is it a mandrel bender?
The standard HB60 is a non-mandrel rotary draw bender. Very thin walls, tight radii or strict ovality limits may require another solution.

How is tooling selected?
Provide material, OD, wall, CLR, bend angle and a drawing so CML USA can confirm the machine and tooling.

HB60 specifications
Mild-steel tube	2 in. OD × .140 in. wall
Pipe	1-1/2 in. Schedule 40
Bend range	0–180 degrees
Centerline radius	Minimum 2 × diameter; maximum 10.5 in.
Speed	1.5 RPM
Power	HB60-M2: 120V single phase; HB60-T: 480V three phase
Dimensions / weight	27 × 15 × 36 in. / 290 lb

Prepare Your Bend Data With Bend Genie

Build the part in 3D, review the bend sequence, prepare LRA information, and calculate springback before production. See how Bend Genie supports a better Ercolina machine and tooling discussion.

Explore Bend Genie for Ercolina Try Bend Genie

HB60 Hot Shot: Bends to 2″ Tube – 1-1/2″ Pipe

Electrical Options:
HB60-M2 – 120V 1 ph
HB60-T – 480V 3ph

ROTARY DRAW ACCESSORIES

Use Ercolina’s rotary draw accessories to expand the capabilities of your Ercolina machine. Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.

A40/P TWO AXIS POSITIONER

A40-P Two Axis Positioner is ideal for repetitive parts and left and right mirror images. Use with Ercolina’s Super Bend-Tech SE software to quickly layout and produce drawings for bending applications.Not sure what you need? Call us and we will walk you through which accessories would best suit your requirements.

BENDING SOFTWARE

Use Ercolina’s BendGenie or Super Bend-Tech SE bending software to quickly layout and produce drawings for pipe and tube rotary draw bending applications! Ideal for use with A40-P Two Axis Positioner.
