Ercolina 48 Plus vs. Baileigh RDB-150
These machines take different approaches. The Baileigh RDB-150 is a 110V hydraulic rotary draw bender with a larger published maximum tube and pipe capacity. The Ercolina 48 Plus is a 220V electromechanical bender focused on stored angle control, visible springback compensation, quick-change tooling and compact operation without hydraulic components.
Comparison references the current Ercolina USA 48 Plus page and capacity document, the Baileigh RDB-150/RDB-150-AS operator’s manual, and current distributor listings. Specifications can change and should be confirmed before purchase. The standard RDB-150 and RDB-150-AS must not be described as the same configuration.
Choose on the finished part – not diameter alone
The RDB-150’s larger headline capacity is a legitimate advantage when the application requires it. For material within the 48 Plus range, buyers should also compare bend quality, centerline radius, springback workflow, tooling changes, floor space, maintenance preferences and how easily operators can repeat the finished part.
CML USA can review the drawing and demonstrate representative material so the decision is based on the required bend—not only a maximum-capacity number.
Frequently asked questions
Can the 48 Plus bend 2-inch tube?
Yes, within its published material assumptions. Capacity depends on alloy, tensile strength, wall thickness, CLR and tooling.
Is the 48 Plus hydraulic?
No. It uses an electromechanical drive and has no hydraulic components.
Does it store bend angles?

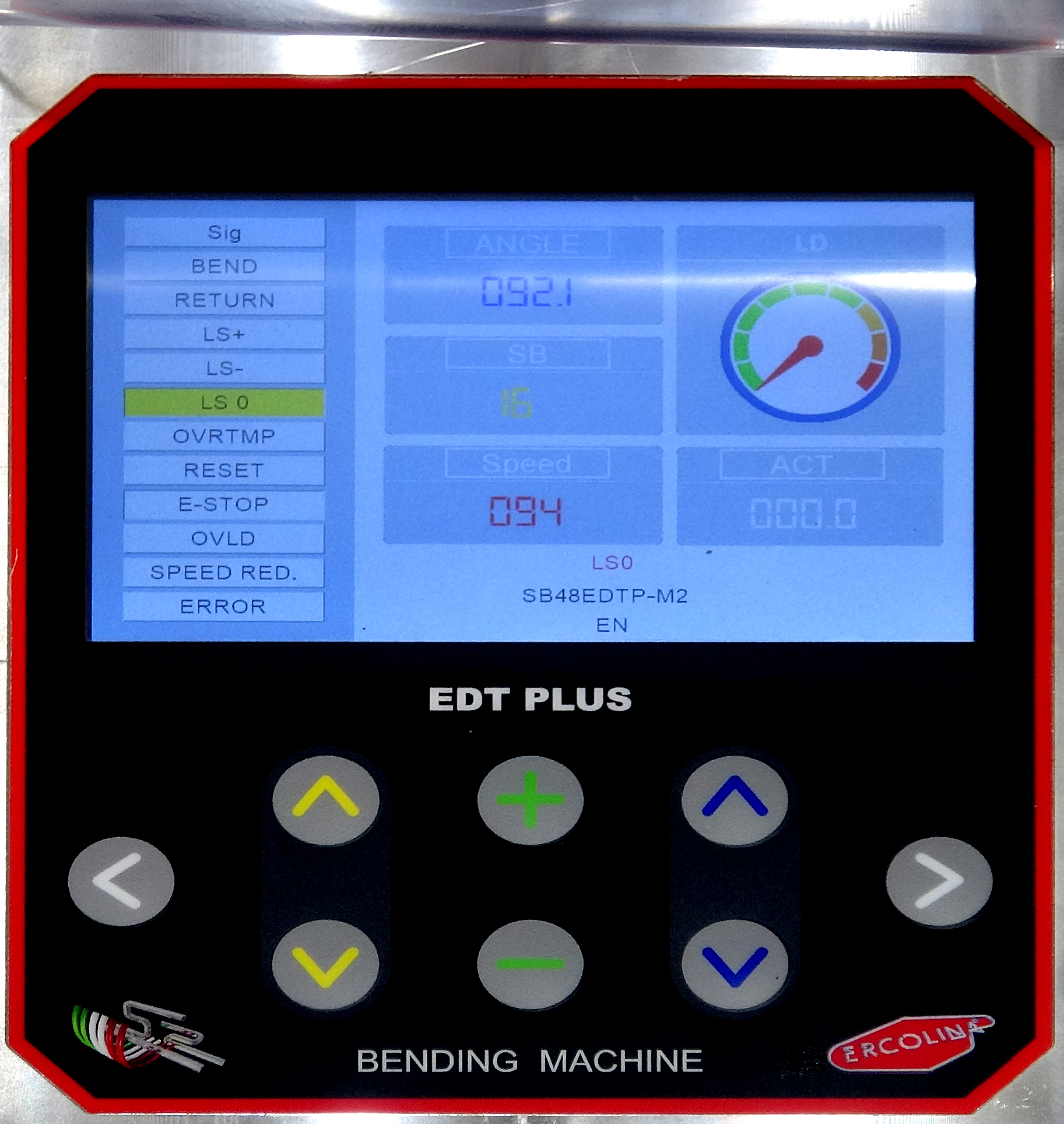

Yes. The one-touch control allows the operator to program and automatically store the desired bend angle.
Can it bend square tube?
Yes, with published capacity up to 1-1/2-inch square tube. Tooling and removal requirements should be reviewed for the specific profile.
How does it compare with the RDB-150?
The RDB-150 has larger published maximum tube and pipe capacities. The 48 Plus offers electromechanical operation, stored angle control, a separate springback display, an 8-7/8-inch maximum CLR and a compact Ercolina tooling platform.
Request a 48 Plus application review
Provide material grade, OD, wall thickness, CLR, bend angle, number of bends and production quantity. CML USA will confirm capacity, tooling and whether the 48 Plus or another Ercolina model is the better fit.
