GB200CNC Giga Bender

00-GB200

Image 1 of 3

Request a quote on this mandrel bender or call 563-391-7700, for immediate assistance.

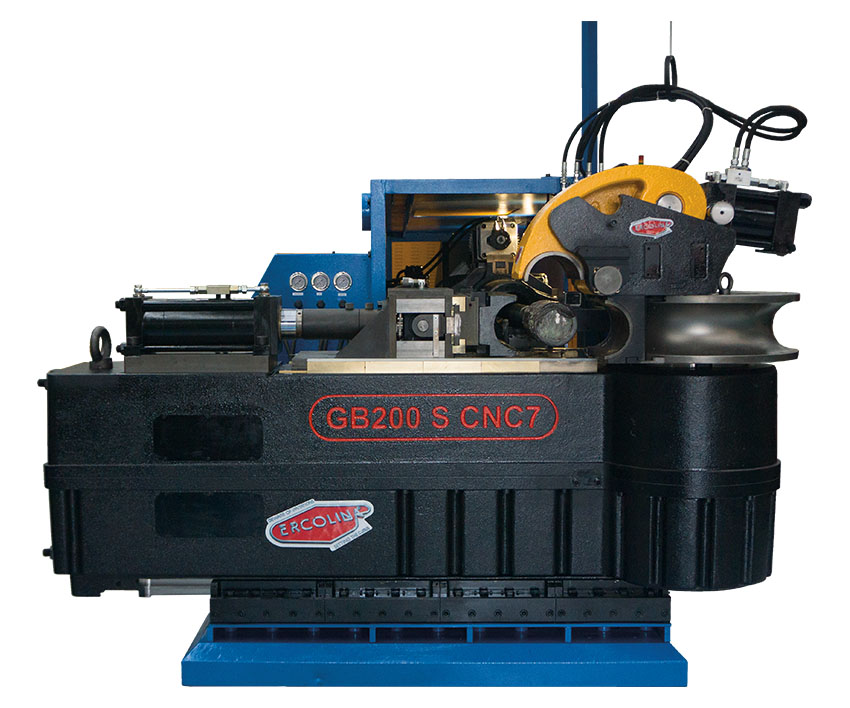

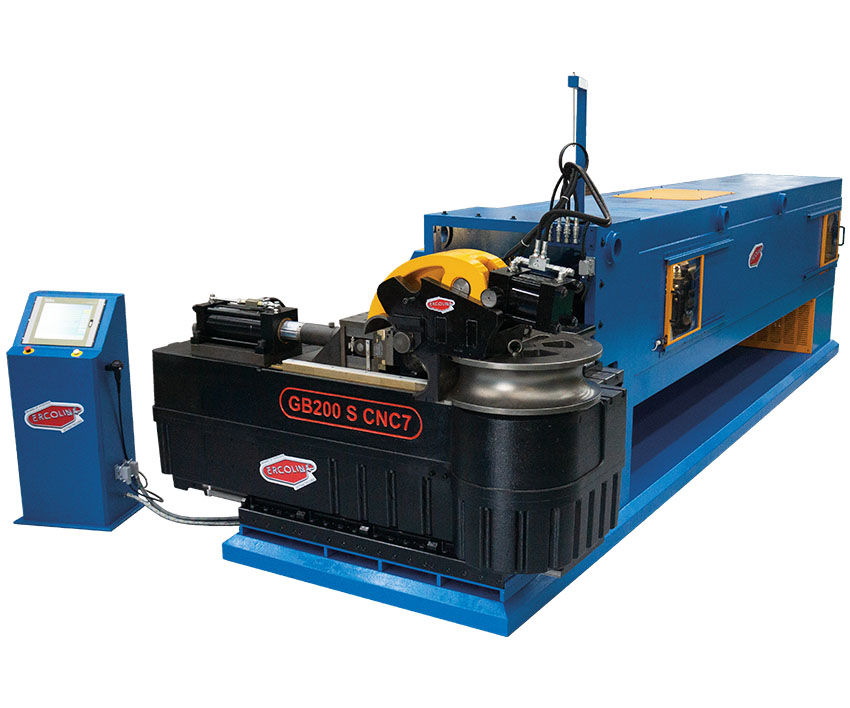

GB200CNC Giga Bender: Capacity to 6-1/2″ Tube

Electrical Options:
480V Three Phase

You Buy We Fly Promotion

request-pricing

VIDEO HIGHLIGHTS ERCOLINA’S GB200 GIGA BENDER!

Ercolina’s Giga Bender series of CNC mandrel benders includes the GB200, ideal for industrial bending of tube, pipe, square and rectangular profiles to center line radius as small as 1.3 x diameter.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

  • Mild steel tube capacity 6½” (.187 wall)
  • Stainless tube capacity 6″ (.187 wall)
  • Square tube capacity 4″ (.187 wall)
  • Minimum tube capacity 2″
  • Maximum pipe capacity 6″ Schedule 40

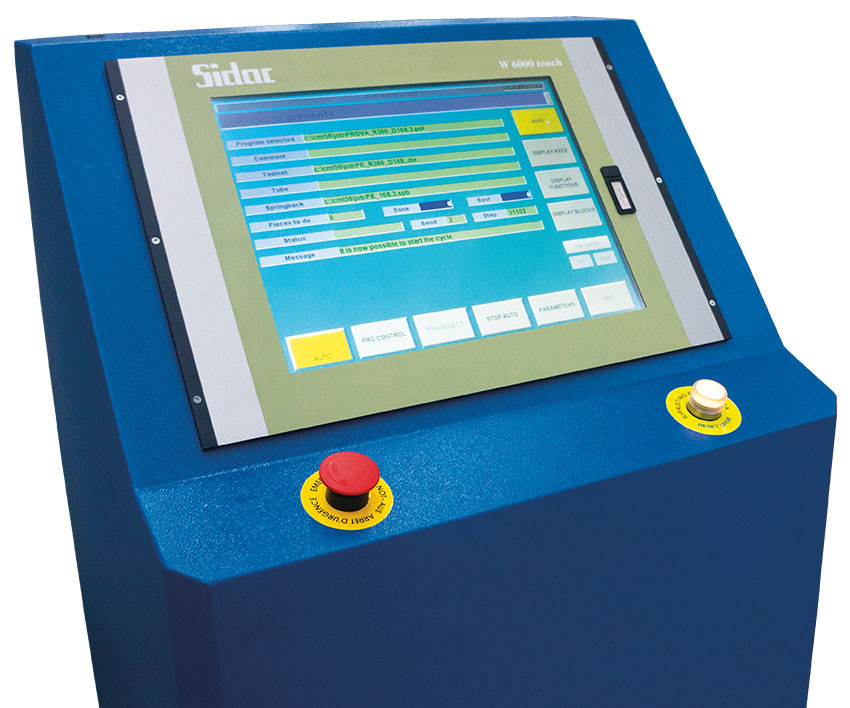

  • Interactive PLC touch screen offers easy access to auto and manual operating modes, system diagnostics and multiple language capability
  • Programmable bend angles with independent material springback setting for each bend
  • Programmable auto mandrel positioning allows operator to optimize extraction for improved bend quality
  • Programmable clamping, pressure die and boost movements with manual override
  • USB for unlimited program memory storage and communication
  • Precision encoders on each axis
  • Touch screen displays absolute (ABS) or incremental (INC) positioning with inch or metric readout
  • Programmable tail stock interference zone monitors position and eliminates workhead collision
  • Standard hydraulic ports accept Ercolina’s patented (KST) clam shell clamp system
  • Accepts YBC and XYZ input values
  • Y – Feeding Hydraulic
  • B – Feeding Hydraulic
  • C – Bending Hydraulic CNC
