CE35 Angle Roll

2021-01_ercolina-erco-tech-direct-angle-roll

ERCOLINA CE35 Angle Roll: 1-1/2″ Capacity Sch. 40 Pipe and angle iron

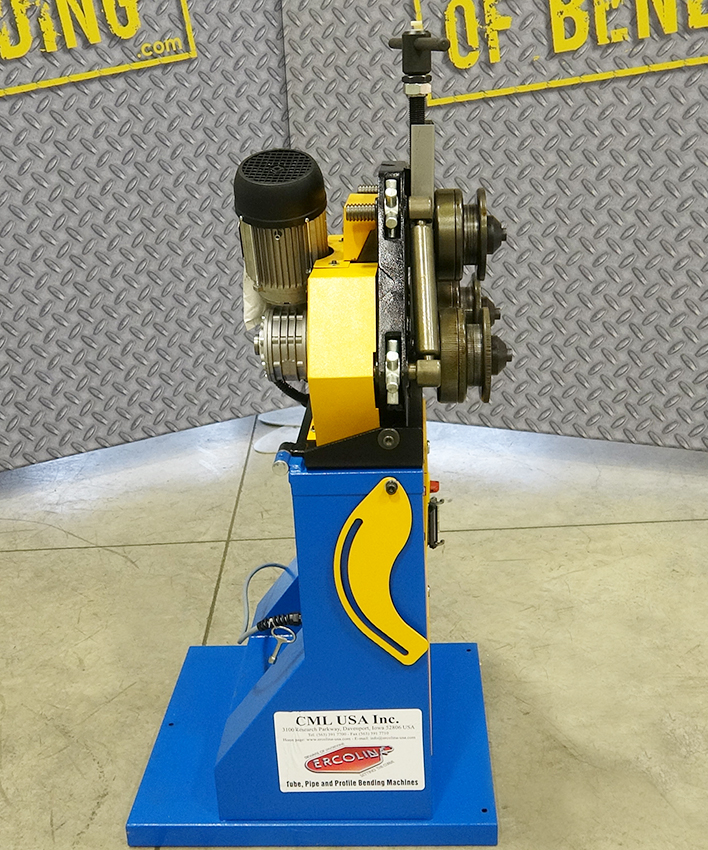

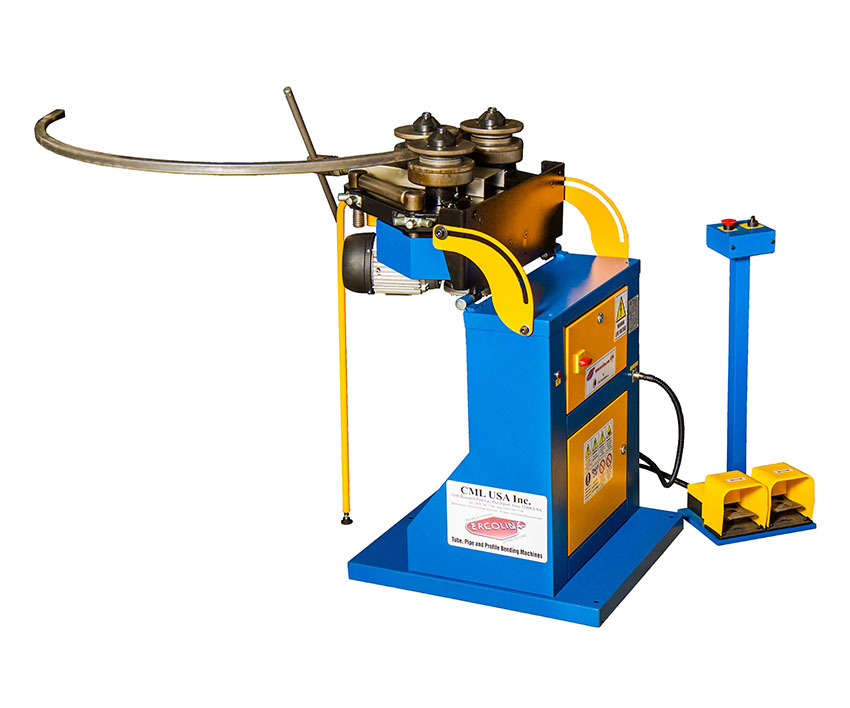

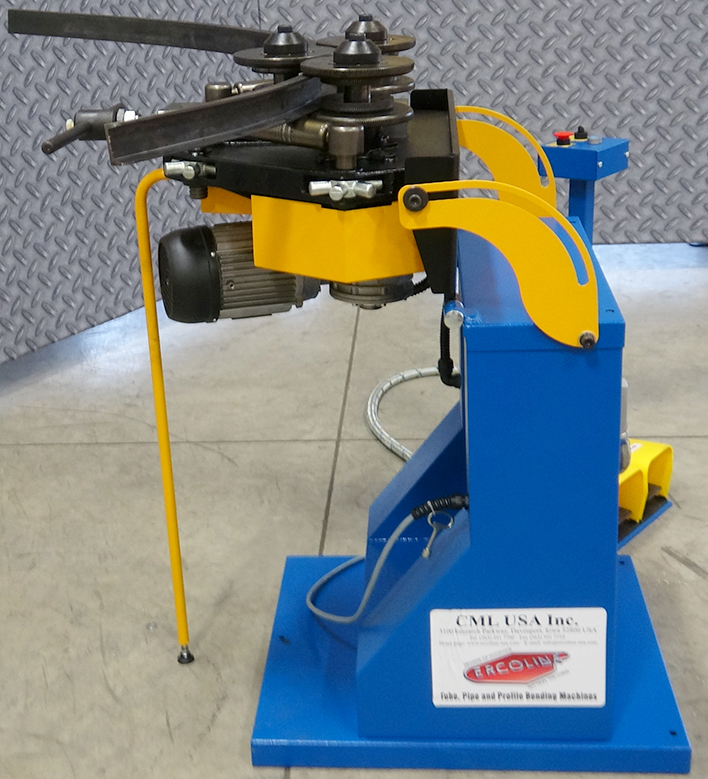

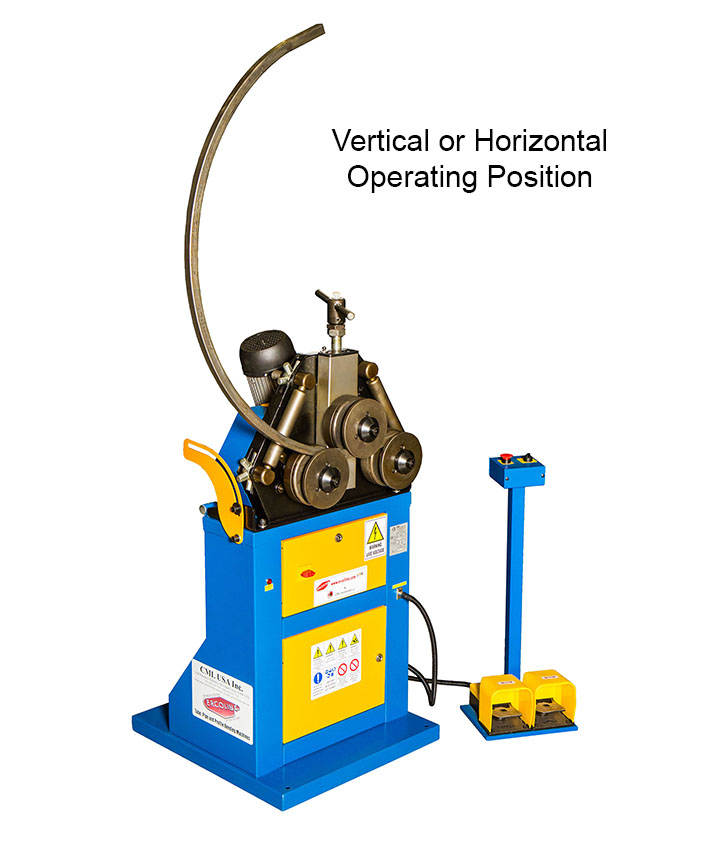

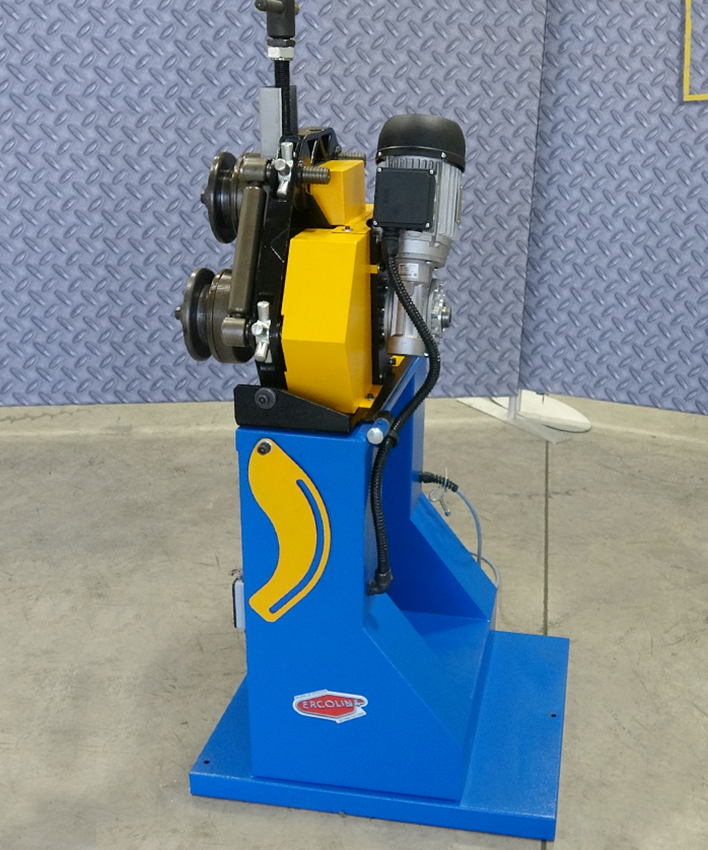

Ercolina’s model CE35 angle roll offers convenient single phase power (220V 1ph), perfect for shops without 3-phase power. Manual center roll positioning, two speeds (6/12 rpm), and vertical or horizontal operating position available.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

Key Features

Bending speeds 20% faster than competitive machines

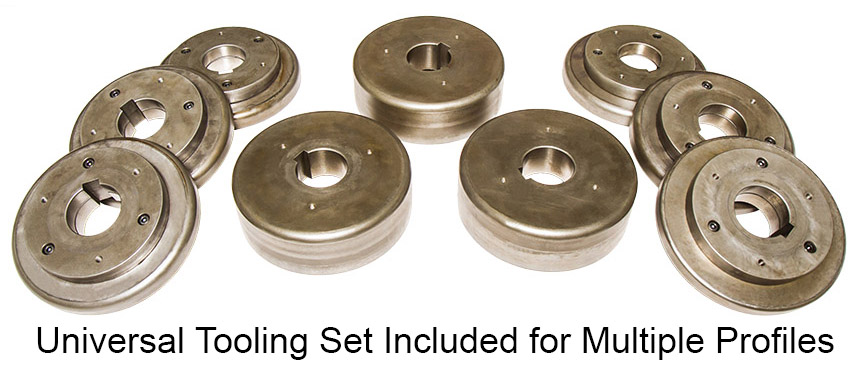

Universal tooling set included with each machine – 6-5/8″ OD
Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
Roll shafts supported with conical steel bearings on each side of A Frame
Heavy duty structure and rigid components for high section modulus ratings

Reinforced engineered mainframe design proven to outperform competitive models

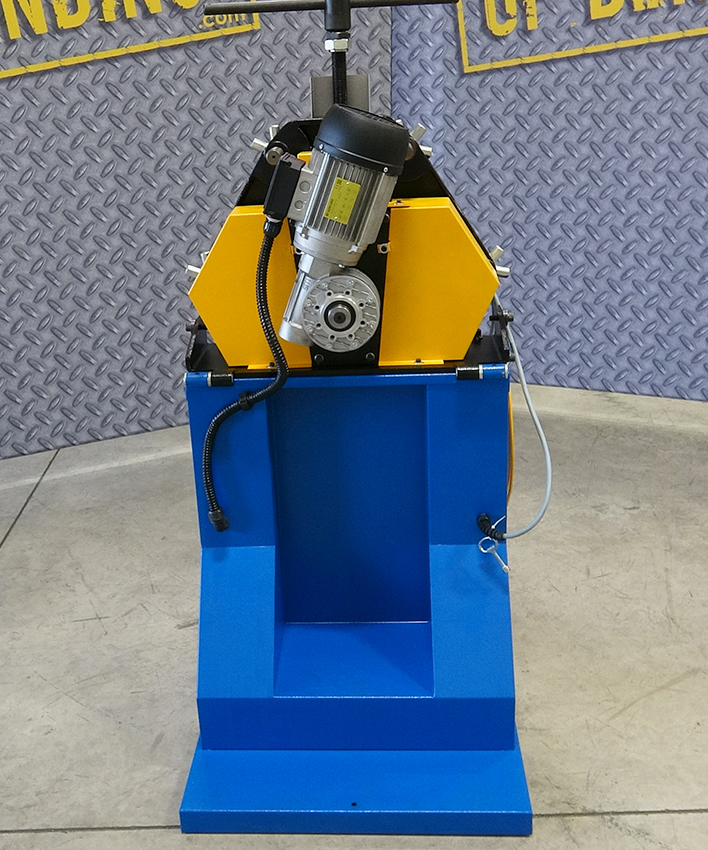

Heavy duty gearbox drives lower roll shafts
Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage

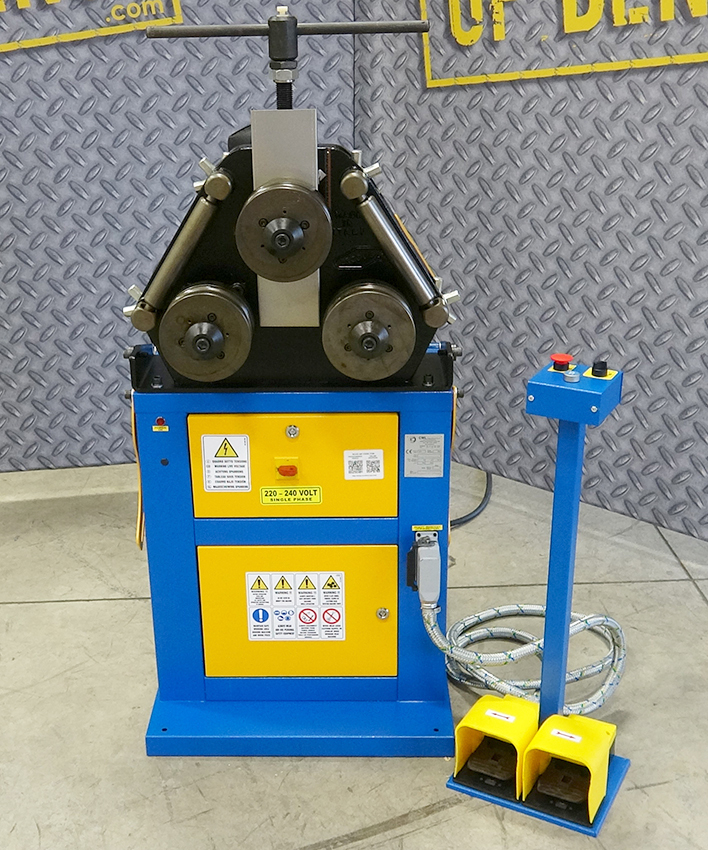

Control tower with foot pedal operation of roll movement
Optional Anti-twist correction system for angle iron “Leg In” applications

Capacities & Specifcations

Pipe (Max.)	1-1/2″ Sch. 40
Angle (Max.)	1-1/2″ x 1-1/2″ x 1/4″
Tube (Max.)	2″ – .156 wall
Roll Shaft Diameter	40mm

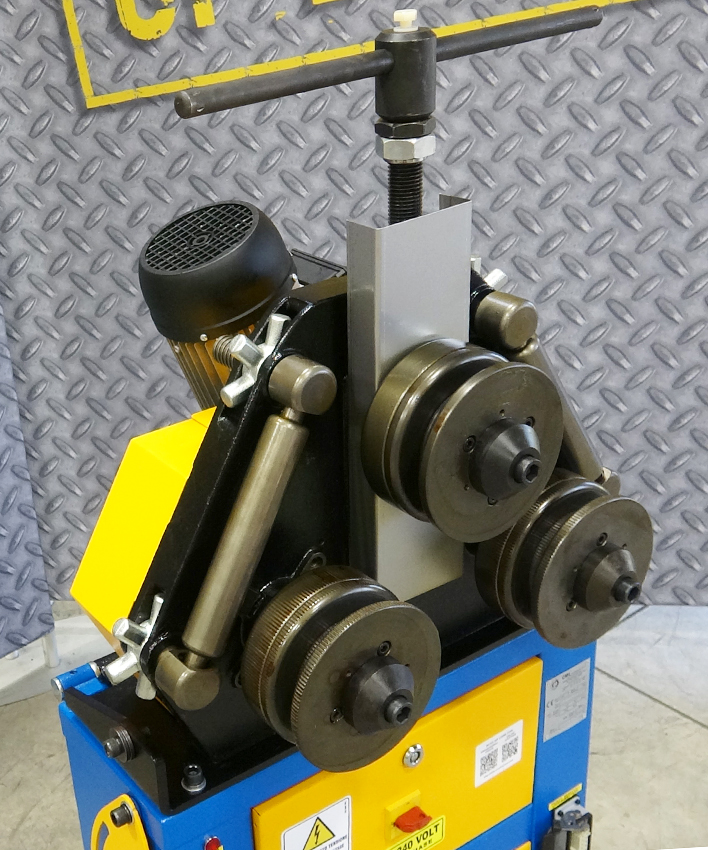

Center Roll Positioning	Manual
Shaft Speed	6 or 12 RPM
Universal Tooling (Included)	6-5/8″ O.D.
Programming	Not available
Distance between Shafts	11-3/8″
Operating Voltage	220V 1ph
Length, Width, Height	27-1/2″ x 25-1/2″ x 59″

All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.

Available Accessories

Anti Twist Device	Required for angle iron “leg in” applications	CEA4-ECO40
Small Radius Tooling	Adjustable tooling set for small radius bending applications	C4RR
Fabricator’s Measuring Set	Kit contains 160mm and 350mm chord gauges, a digital radius gauge and a digital angle degree protractor	KARC

Minimum Radius Guide on Mild Steel Material

Profile Type	Profile Dimensions	Min. CLR Inches	Wall
Pipe	1/2″ 1″ 1-1/4″	6 10 15	.109 .133 .140
Tube	1″ 1-1/2″ 2″	6 12 16	.120 .120 .095
Square Tube	3/4″ x 3/4″ 1-1/2″ x 1-1/2″	8 18	.065 .120
Rectangular Tube Hard way	3/8″ x 1″ 1/2″ x 1-1/4″	10 14	.065 .095
Rectangular Tube Easy way	1″ x 3/8″ 1-1/4″ x 1/2″	10 18	.065 .095
Round Solid	3/4″	4 *	NA
Square Solid	5/8″ 1″	4 * 8	NA NA
Rectangular Solid Hard way	3/8″ x 1-1/4″ 3/8″ x 1-1/2″	8 10	NA NA
Rectangular Solid Easy way	1-1/4″ x 3/8″ 1-1/2″ x 3/8″	6 8	NA NA
Angle “Leg Out”	1″ x 1″ 1-1/2″ x 1-1/2″	8 16	.125 .187
Angle “Leg In”	1″ x 1″ 1-1/2″ x 1-1/2″	10 18	.125 .187

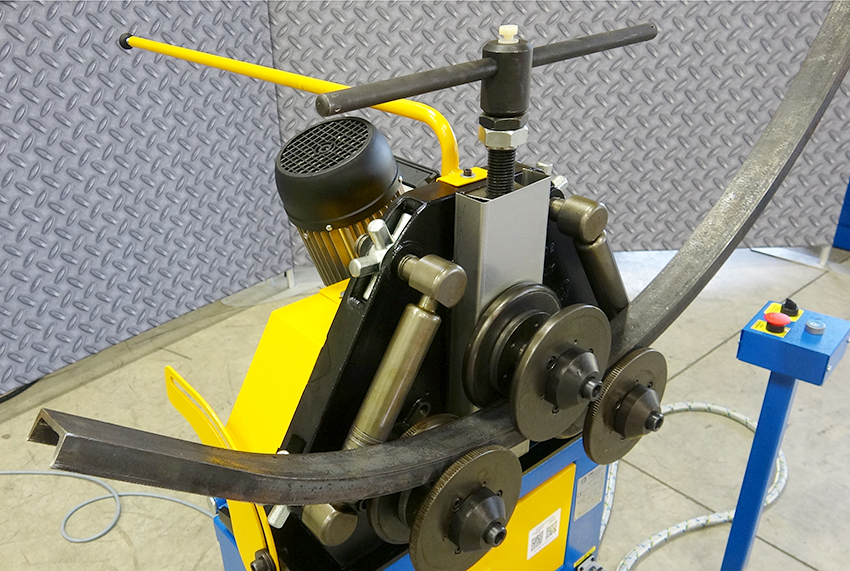

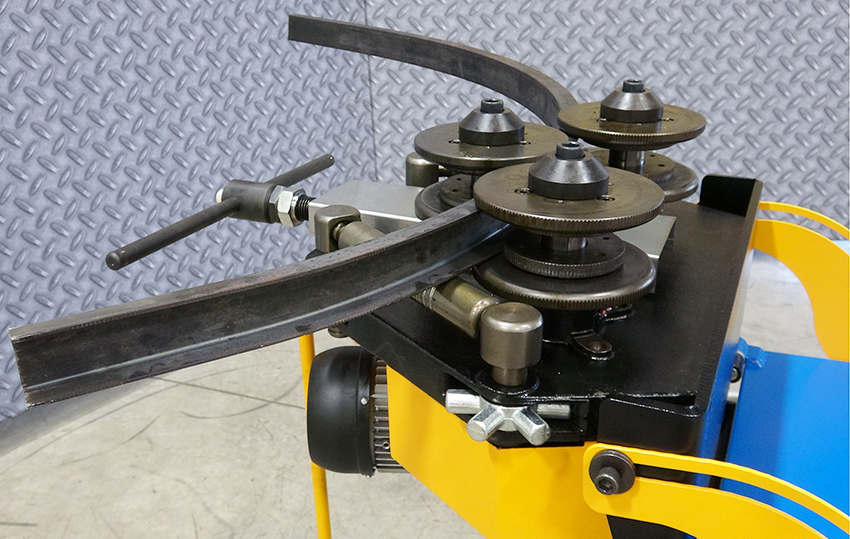

C “Leg Out”	1-1/4″ x 1/2″	8	.187
C “Leg In”	1-1/2″ x 3/4″	8	.187
