Overview

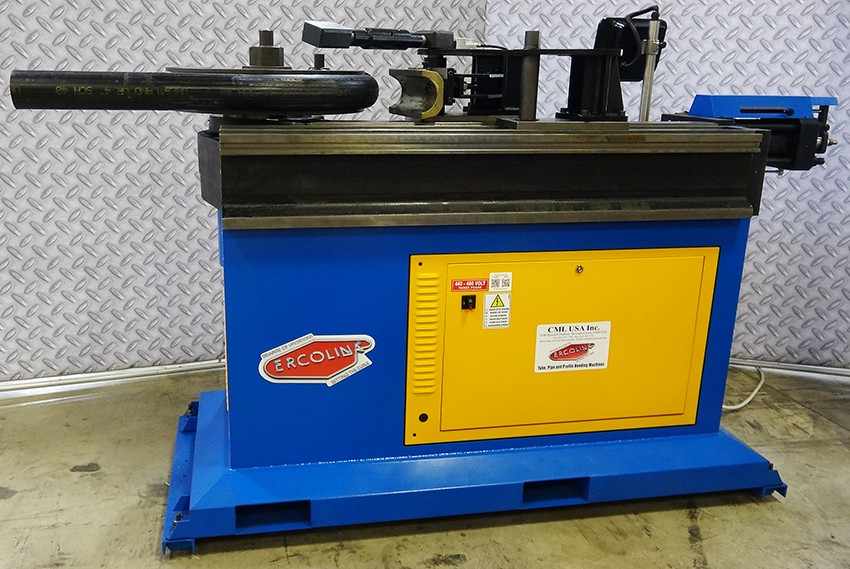

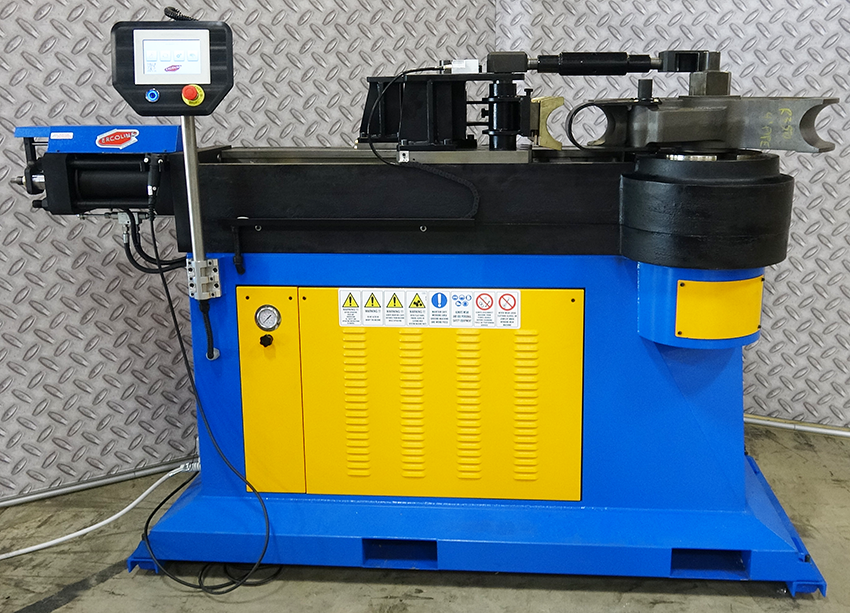

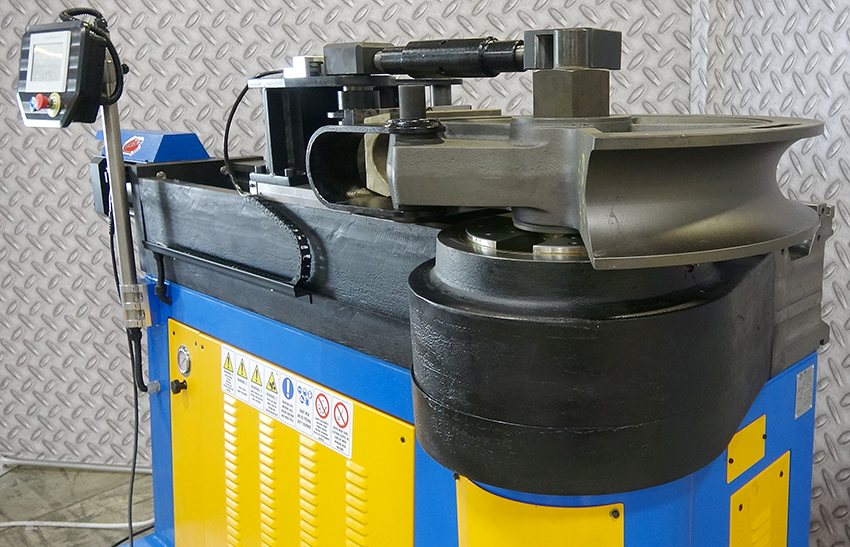

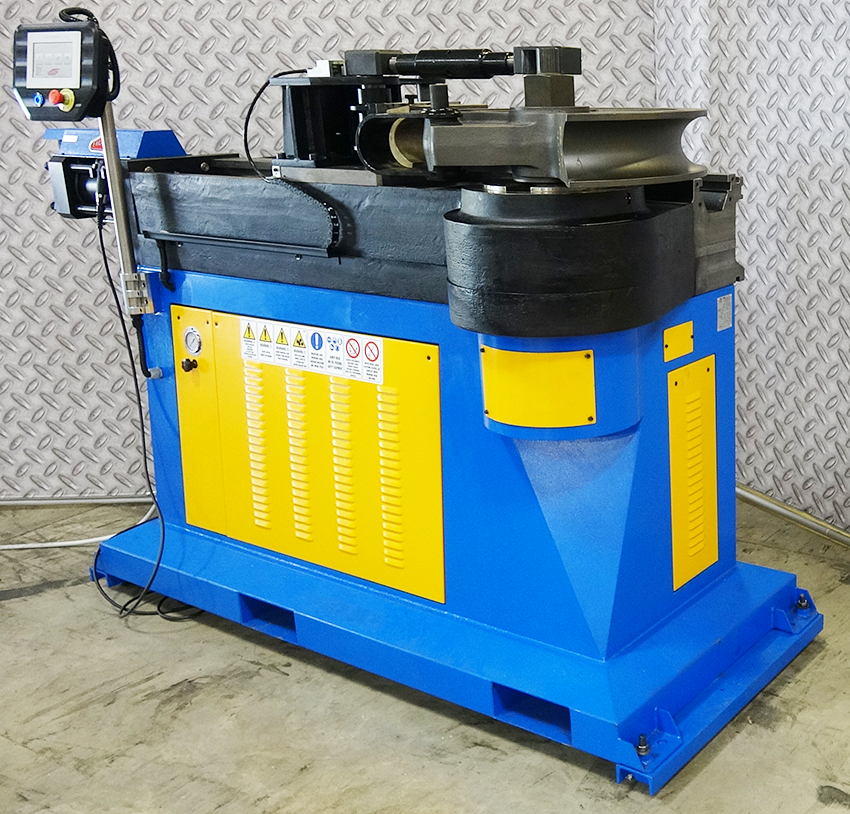

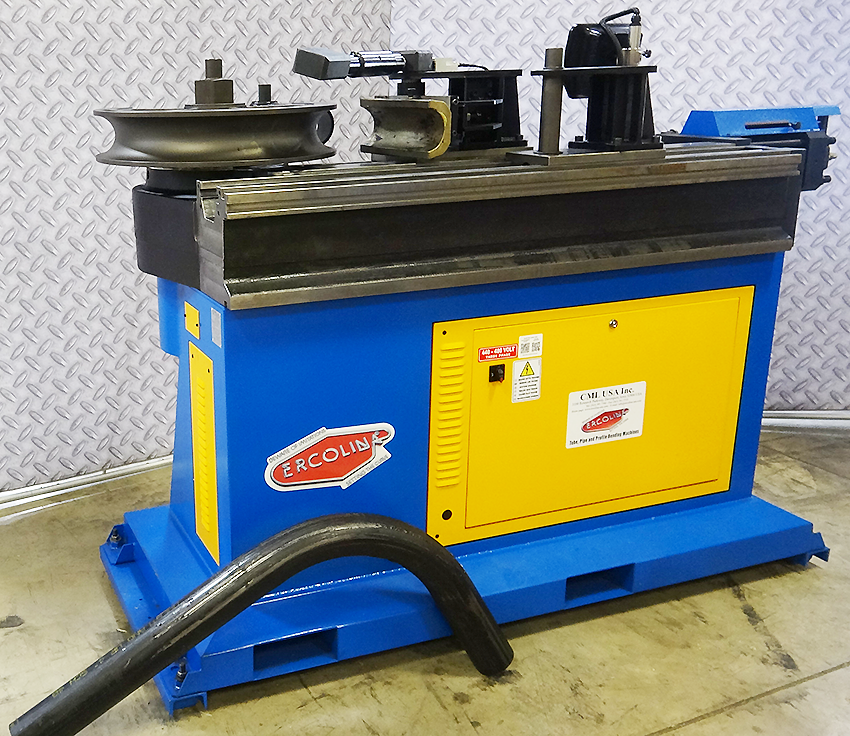

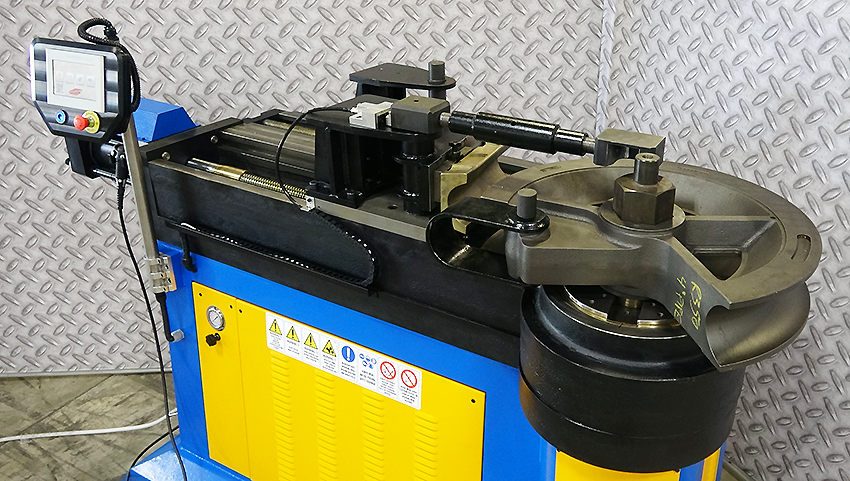

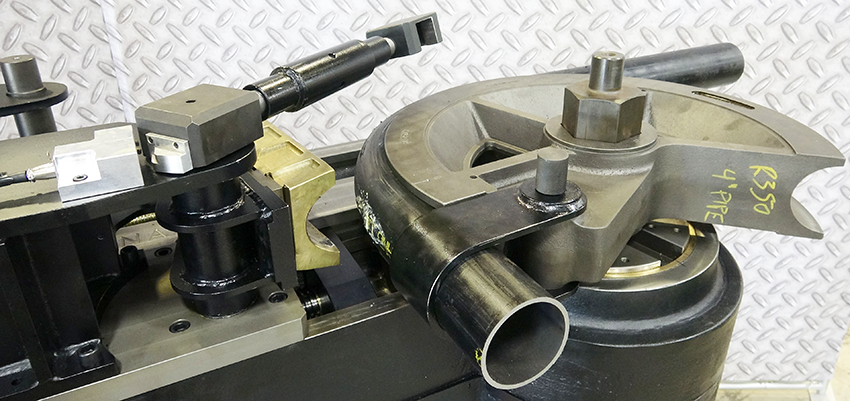

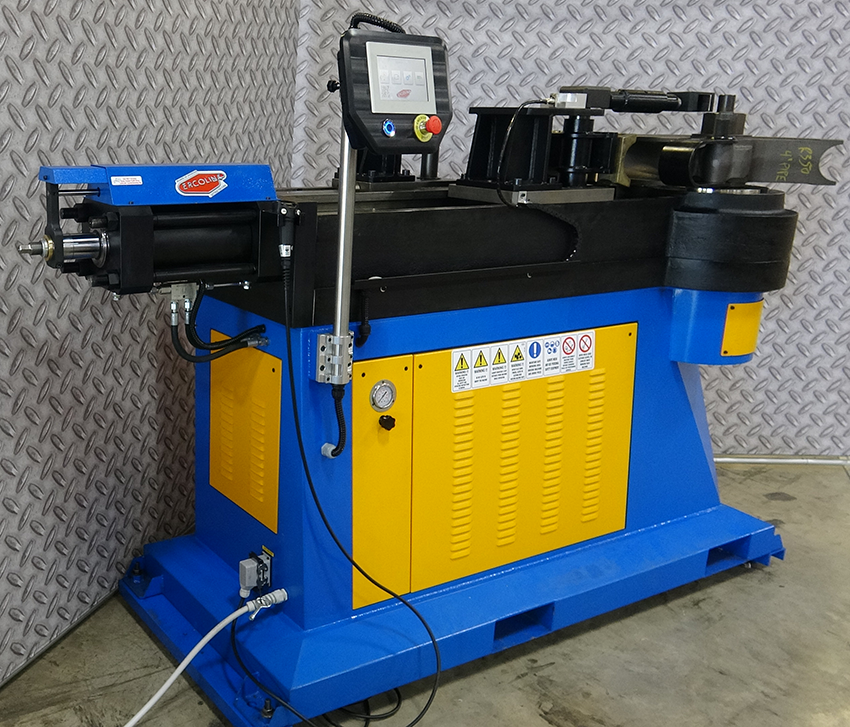

Ercolina’s TB180 Top Bender is ideal for producing consistent quality bends in
larger pipe, tube, squares, solids and
other profiles.

Key Features

  • Tube capacity 6″ .120 wall
  • Pipe capacity 6″ Sch. 10
  • Square tube capacity 4″
  • Maximum CLR 39-1/4″
  • Bend to CLR as small as 3D

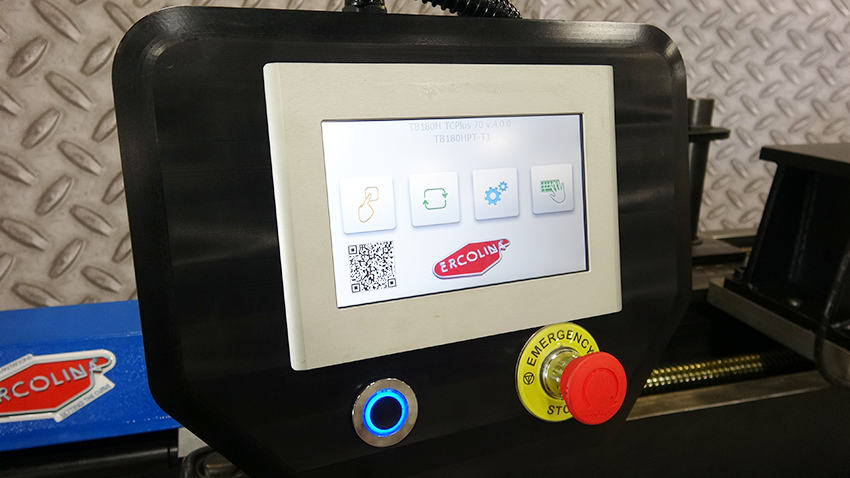

  • Touch screen programming of bend angle with system diagnostics in multiple languages
  • Quick-change tooling system
  • Digital display of bend angle
  • Material spring back compensation
  • Hand-held remote control of bend, return and emergency stop functions
  • Counterbending die positioning monitored electronically for accuracy and repeatability
  • Heavy-duty steel gear case

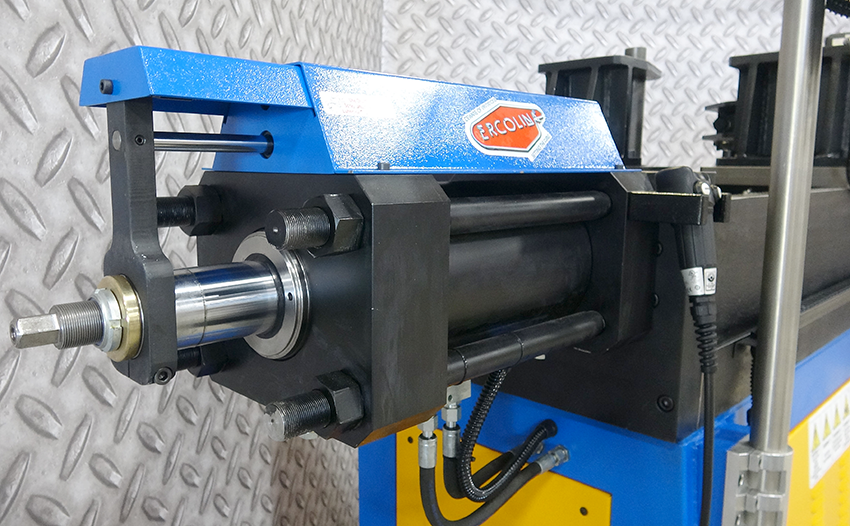

  • Optional hydraulic clamping system available
  • All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.

Downloads

All Ercolina machines have downloadable material, available in PDF format.
View Downloads
